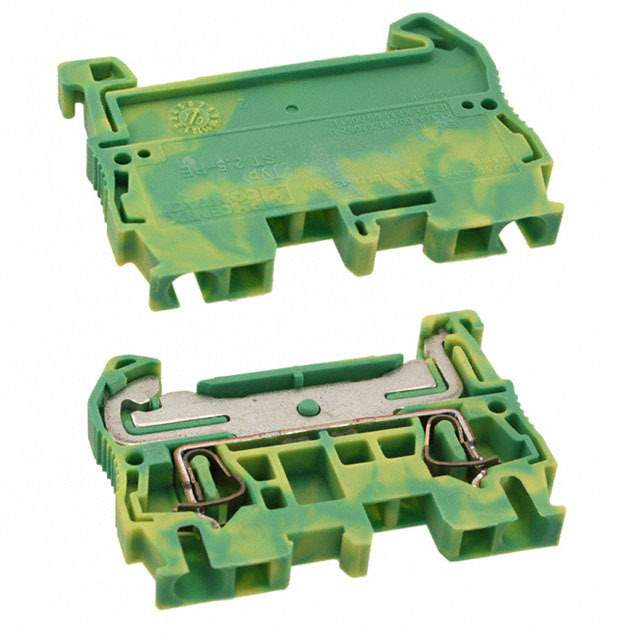

3031238 Real Image
Same model may have multiple batches, images only for reference.

3031238

Part No 3031238
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description CONN TERM BLK GROUND 12-28AWG / Terminal Block Connector 2 Position Ground, Earth Green, Yellow 12-28 AWG
Datasheet
3031238 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Din Rail, Channel
Manufacturer Phoenix Contact
Packaging Box
Type Ground, Earth
Number of Positions 2
Number of Levels 1
Terminal - Width 5.2mm
Termination Style Push In, Spring
Wire Gauge or Range - AWG 12-28 AWG
Wire Gauge or Range - mm2 0.08-4mm²
Color Green, Yellow
Material - Insulation Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Stripping Length 10mm
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 277-2053,ST2.5PE
Standard Package 50
Win Source Part Number 1332192-3031238
Ultra Librarian 3D Model Ultra Librarian 3031238 CAD Model

Description

The 3031238 is a ground terminal block manufactured by Phoenix Contact.

  • Family: DIN Rail, Channel
  • Packaging: Box
  • Standard Packages: 50
  • Termination Style: Push in and spring
  • Wire Gauge or Range: 12-28 AWG
  • Wire Gauge or Range: 0.08-4mm²
  • Material Insulation: Polyamide (PA) or nylon
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
