Same model may have multiple batches, images only for reference.

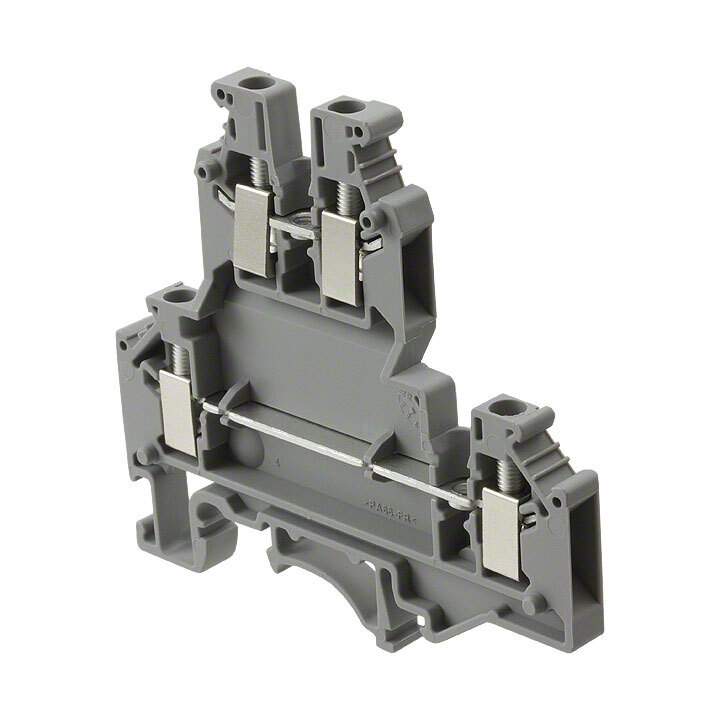

2771010

Name: 2771010
Brand: Phoenix Contact
SKU: 1332282
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2771010
Manufacturer	Phoenix Contact
Catalog	Terminal Blocks
Description	CONN TERM BLK FEED THRU 12-28AWG / Terminal Block Connector 4 Position Feed Through Gray 12-28 AWG
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Din Rail, Channel
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Feed Through
Number of Positions	4
Number of Levels	2
Terminal - Width	5.2mm
Termination Style	Screw
Current - IEC	24 A
Voltage - IEC	500V
Current - UL	20 A
Voltage - UL	600V
Wire Gauge or Range - AWG	12-28 AWG
Wire Gauge or Range - mm2	0.2-4mm²
Color	Gray
Material - Insulation	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Stripping Length	8mm
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	UKKB3,277-3295,2771010-ND,2771010-NDR
Standard Package	50
Win Source Part Number	1332282-2771010
Ultra Librarian 3D Model	Ultra Librarian 2771010 CAD Model

Description

The Phoenix Contact 1332282-2771010 is a feed-through terminal block with four positions and two levels.

Number of Positions: 4
Number of Levels: 2
Termination Style: Screw
Current (IEC): 24A
Current (UL): 20A
Voltage (IEC): 500V
Voltage (UL): 600V
Wire Gauge Range: 12-28 AWG and 0.2-4mm²
Insulation Material: Polyamide (PA) Nylon
Flammability Rating: UL94 V-0
Color: Gray
Standard Package: 50
Terminal Width: 5.2mm
Stripping Length: 8mm
Disconnect Type: Not Available
ECCN: EAR99
HTSUS Code: 8536.69.8000
RoHS Compliant: Yes
