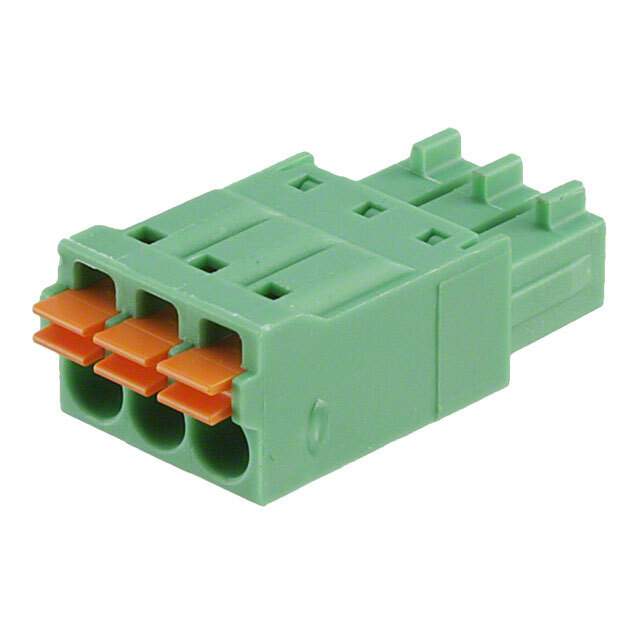

Same model may have multiple batches, images only for reference.

1952270

Name: 1952270
Brand: Phoenix Contact
SKU: 1144266
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1952270
Manufacturer	Phoenix Contact
Catalog	Terminal Blocks
Description	Pluggable Terminal Blocks 3 Pos 3.5mm pitch Pl ug 24-16AWG Spring
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	CB, VDE, cULus
Color	Green
Contact Material	Copper
Contact Plating	Tin
Current	8 A
Current Rating	8 A
Depth	7.8 mm
Flammability Rating	UL94 V-0
Gender	Female
Height	7.8 mm
Housing Color	Green
Housing Material	Polyamide
Lead Free	Lead Free
Length	22.9 mm
Material	Polyamide
Max Current Rating	8 A
Mount	Cable, Free Hanging
Number of Circuits	3
Number of Contacts	3
Number of Levels	1
Number of Positions	3
Number of Positions Per Level	3
Number of Rows	1
Orientation	Straight
Pitch	3.5 mm
RoHS	Compliant
Termination	Screwless
Voltage	150 V
Voltage Rating	160 V
Weight	1.970008 g
Width	22.9 mm
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Win Source Part Number	1144266-1952270
Categories	Terminal Blocks
Manufacturer	Phoenix Contact
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 1952270 CAD Model

Description

The Phoenix Contact electronic component is a terminal block with a green housing color and a screwless termination.

Win Source Part Number: 1144266-1952270
Number of Positions: 3
Current Rating: 8A
Voltage Rating: 160V
Length: 22.9mm
Width: 22.9mm
Height: 7.8mm
Housing Material: Polyamide
Approvals: CB, VDE, and cULus
Popularity: Medium
Supply and Demand: Limited
