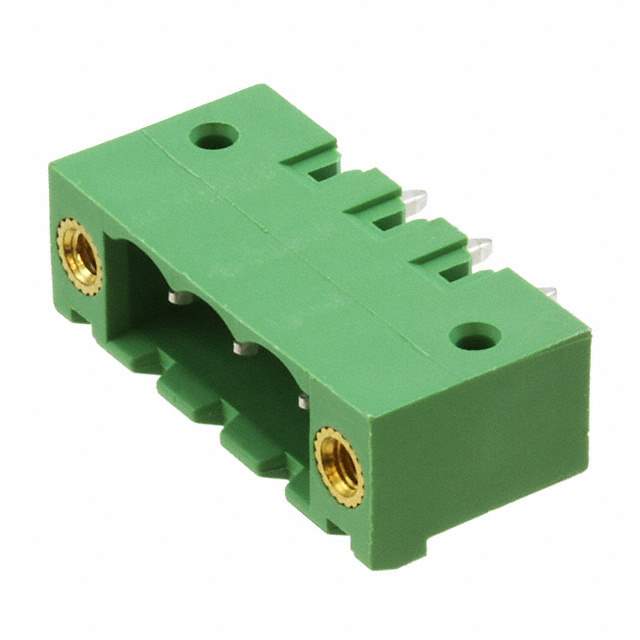

1924538 Real Image
Same model may have multiple batches, images only for reference.

1924538

Part No 1924538
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 3POS VERT 5.08MM / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Current - IEC 16A
Voltage - IEC 400 V
Current - UL 16 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.154" (3.90mm)
Insulation Height 0.472" (12.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1924538-ND,277-9067,MSTBV25HC3GF508,MSTBV2.5HC/3-GF-5.08
Standard Package 50
Win Source Part Number 1332296-1924538
Ultra Librarian 3D Model Ultra Librarian 1924538 CAD Model

Description

The Phoenix Contact Header component is a versatile and reliable choice for a variety of electronic applications.

  • Current Rating: 16A
  • Voltage Rating: 400V
  • Type: Male Pins
  • Features: Shrouded (4 Side)
  • Color: Green
  • Housing Material: Polyamide (PA) Nylon
  • Insulation Height: 0.472 inches (12.00mm)
  • Mounting: Through-Hole
  • Standard Package: 50
  • ROHS3 Compliant: Yes
