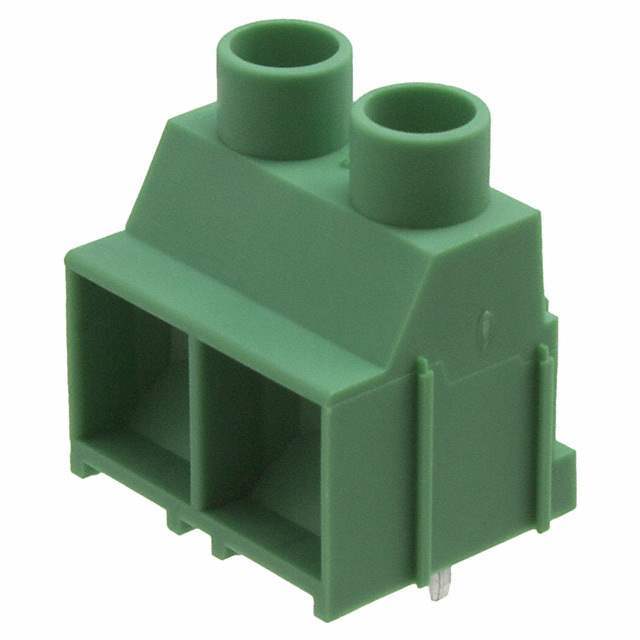

1902547 Phoenix Contact
Same model may have multiple batches, images only for reference.

1902547

Part No 1902547
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 2P SIDE ENT 9.53MM PCB
Datasheet
1902547 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208158-1902547
Manufacturer Phoenix Contact
Category Connectors, Interconnects -Terminal Blocks -Wire to Board
Series COMBICON MKDS
Package Bulk
Product Status Active
Pitch 0.375" (9.53mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Ultra Librarian 3D Model Ultra Librarian 1902547 CAD Model

Description

PC terminal block, Nominal current: 32 A, Nom. voltage: 800 V, Pitch: 9.52 mm, Number of positions: 2, Type of connection: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions! If used purely as 2-pos., we recommend version MKDSV 5 HV with anti-rotation pins.
