Same model may have multiple batches, images only for reference.

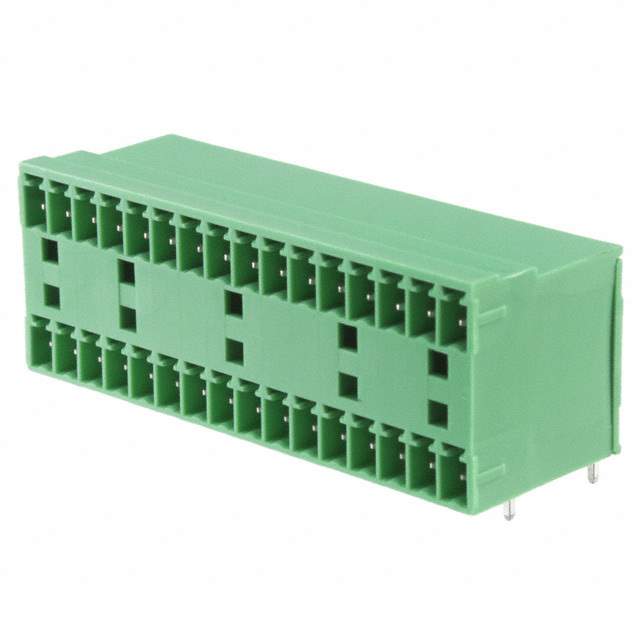

1843211

Name: 1843211
Brand: Phoenix Contact
SKU: 1380591
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1843211
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 32POS 3.81MM / 32 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Datasheet	1843211 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr	Phoenix Contact
Series	COMBICON MCD
Package	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	32
Positions Per Level	16
Number of Levels	2
Pitch	0.150" (3.81mm)
Header Orientation	90°, Right Angle
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	8A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm2	-
Color	Green
Temperature Range - Operating	-
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	-
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.894" (22.71mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	50 pcs
Win Source Part Number	1380591-1843211
Ultra Librarian 3D Model	Ultra Librarian 1843211 CAD Model

Description

The Phoenix Contact COMBICON MCD is a header terminal block with male pins and a shrouded design.

Orientation: 90-degree right-angle
Positions: 32
Positions per Level: 16
Pitch: 0.150" (3.81mm)
Termination Style: Solder
Current Rating (IEC): 8A
Current Rating (UL): 8A
Voltage Rating (IEC): 320V
Voltage Rating (UL): 300V
Material: Polyamide (PA) nylon
Flammability Rating: UL94 V-0
Color: Green
Packaging: Bulk
