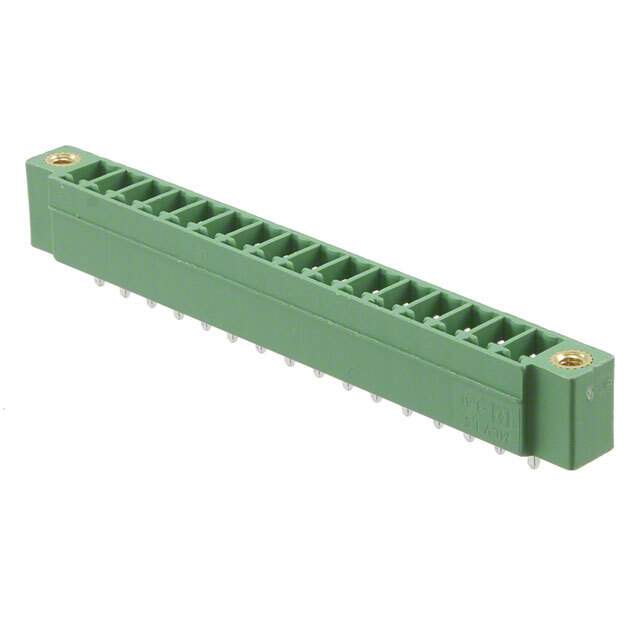

Same model may have multiple batches, images only for reference.

1830732

Name: 1830732
Brand: Phoenix Contact
SKU: 1332188
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1830732
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 16POS VERT 3.81MM / 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	16
Positions Per Level	16
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting	Through Hole
Current - IEC	8A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Features	Mating and Mounting Flange
Material Flammability Rating	UL94 V-0
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.362" (9.20mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	1830732-NDR,MCV1,5/16-GF-3,81,277-5947,1830732-ND
Standard Package	50
Win Source Part Number	1332188-1830732
Ultra Librarian 3D Model	Ultra Librarian 1830732 CAD Model

Alternative Products

Description

The 1332188-1830732 from Phoenix Contact is a shrouded header with male pins for terminal blocks.

Positions per Level: 16
Pitch: 0.150 inches (3.81mm)
Current Rating: 8A
Voltage Rating (IEC): 250VAC
Voltage Rating (UL): 300V
Housing Material: Polybutylene terephthalate (PBT)
Flammability Rating: UL94 V-0
Header Orientation: Vertical
Termination Style: Solder
Insulation Height: 0.362 inches (9.20mm)
Contact Mating Finish: Tin
ROHS3 Compliant: Yes
