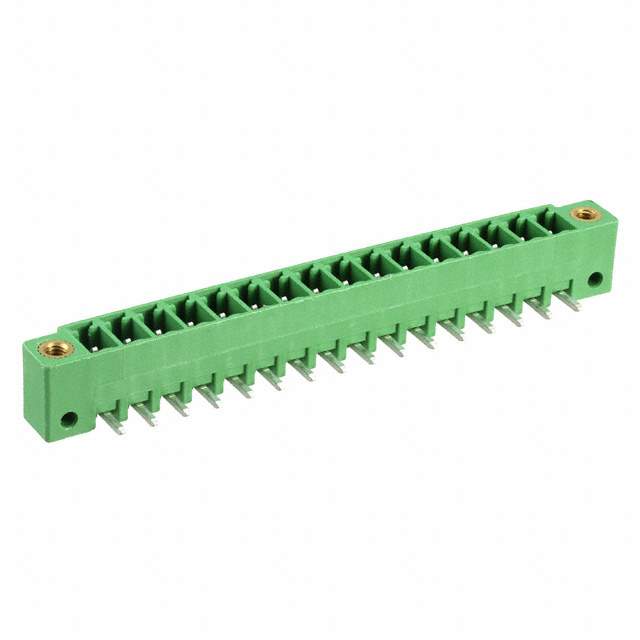

Same model may have multiple batches, images only for reference.

1828003

Name: 1828003
Brand: Phoenix Contact
SKU: 1332316
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1828003
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 16POS 3.81MM / 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Datasheet	1828003 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	16
Positions Per Level	16
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	8A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Features	Mating and Mounting Flange
Material Flammability Rating	UL94 V-0
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.134" (3.40mm)
Insulation Height	0.285" (7.25mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	277-6093,MC 1,5/16-GF-3,81,MC1,5/16-GF-3,81,1828003-ND
Standard Package	50
Win Source Part Number	1332316-1828003
Ultra Librarian 3D Model	Ultra Librarian 1828003 CAD Model

Description

The Phoenix Contact 1332316-1828003 is a terminal block header that is designed for use in connectors and interconnects.

Type: Header, Male Pins
Shrouded: 4 Side
Positions: 16
Termination Style: Solder
Current Rating: 8A
Voltage Rating: 250V
Pitch: 0.150 inches
Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Package Type: Bulk
Standard Package: 50
ECCN: EAR99
HTSUS: 8536.69.4040
