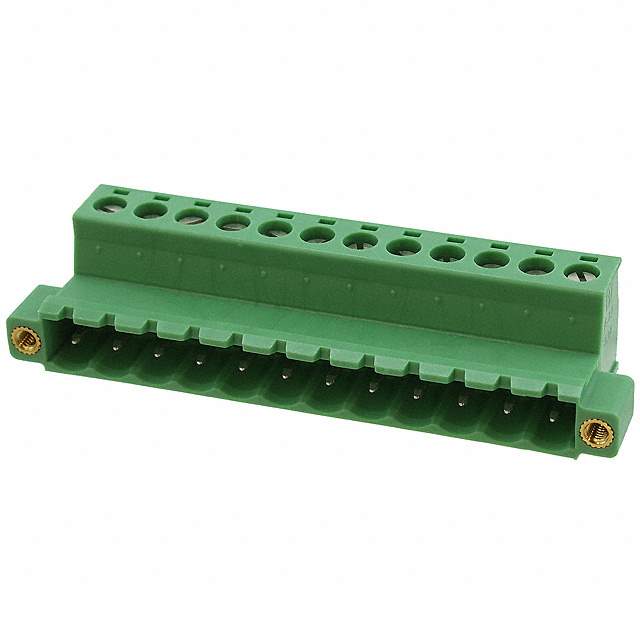

Same model may have multiple batches, images only for reference.

1825608

Name: 1825608
Brand: Phoenix Contact
SKU: 1332315
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1825608
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 12POS STR 5.08MM / 12 Position Terminal Block Plug, Male Pins 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Male Pins
Number of Positions	12
Positions Per Level	12
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591" (15.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	277-5964,IC2,5/12-STGF-5,08,IC 2,5/12-STGF-5,08,1825608-ND
Standard Package	50
Win Source Part Number	1332315-1825608
Ultra Librarian 3D Model	Ultra Librarian 1825608 CAD Model

Description

The Phoenix Contact 1332315-1825608 is a male pin plug connector designed for use in electronic applications.

Positions: 12
Positions per Level: 12
Pitch: 0.200 inches (5.08mm)
Plug Wire Entry: 180-degree
Termination: Screw-Rising Cage Clamp
Current Rating (IEC): 12A
Current Rating (UL): 10A
Voltage Rating (IEC): 630V
Voltage Rating (UL): 300V
Contact Mating Finish: Tin
Housing Material: Polyamide (PA) Nylon
Flammability Rating: UL94 V-0
Packaging: Bulk
Mounting: Free Hanging (In-Line)
Mating Flange: Yes
