1804946

Part No 1804946
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets

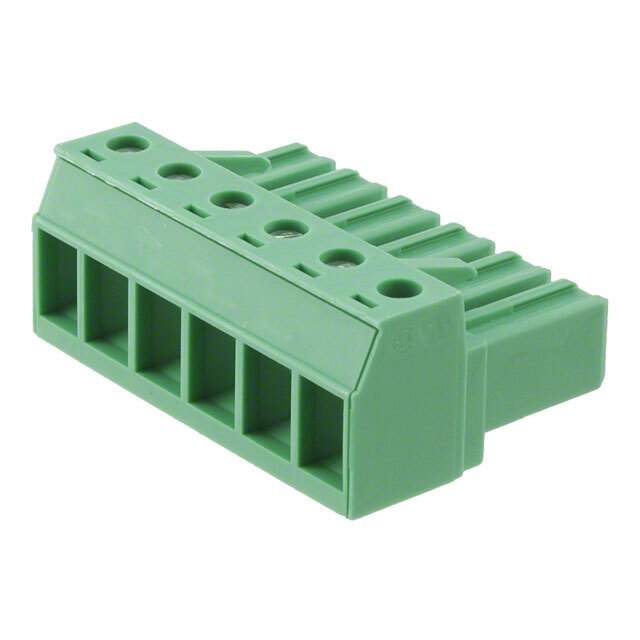

Description TERM BLOCK PLUG 6POS STR 7.62MM / 6 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON PC
Package Bulk
Type Plug, Female Sockets
Number of Positions 6
Positions Per Level 6
Number of Levels 1
Pitch 0.300" (7.62mm)
Header Orientation -
Plug Wire Entry 180°
Termination Style Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line)
Current - IEC 20A
Voltage - IEC 1 kV
Current - UL 5 A
Voltage - UL 600 V
Wire Gauge or Range - AWG 10-30 AWG
Wire Gauge or Range - mm2 0.2-4mm²
Color Green
Temperature Range - Operating -
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size M3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length 7mm
Contact Material -
Housing Material Polyamide (PA), Nylon
Contact Tail Length -
Insulation Height 0.713" (18.10mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 50 pcs
Win Source Part Number 1380581-1804946
Ultra Librarian 3D Model Ultra Librarian 1804946 CAD Model

Description

The COMBICON PC series terminal block plug is a high-quality connector manufactured by Phoenix Contact.

  • Product Series: COMBICON PC
  • Connector Type: Plug and Female Socket
  • Positions per Level: 6
  • Number of Levels: 6
  • Pitch: 0.300 inches (7.62mm)
  • Current: 20A (IEC) and 5A (UL)
  • Voltage Rating: 1kV (IEC) and 600V (UL)
  • Wire Gauge: 10 to 30 AWG
  • Color: Green
  • Features: Retention Latches
