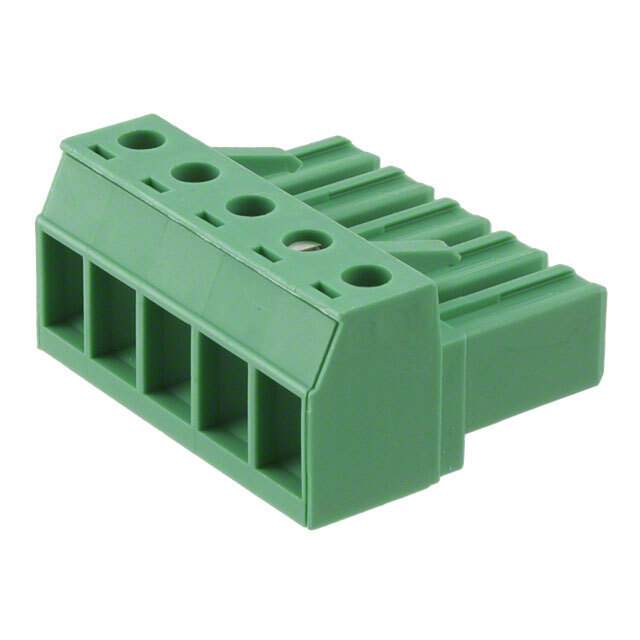

The Phoenix Contact 1332186-1804933 is a plug female socket terminal block with a screw-rising cage clamp termination style.

• Positions per Level: 5
• Level: 1
• Pitch: 0.300-inch
• Plug Wire Entry: 180-degree
• Current (IEC): 20A
• Voltage (IEC): 1 kV
• Current (UL): 5A
• Voltage (UL): 600V
• Wire Gauges: 10-30 AWG
• Wire Size: 0.2-4mm²
• Housing Material: Polyamide (PA) nylon
• Flammability Rating: UL94 V-0
• Standard Package: 50
• Mounting: In-line
• Screw Size: M3
• Torque Range: 0.5-0.6 Nm (4.4-5.3 Lb-In)
• Insulation Height: 0.713 inches (18.10mm)
• Wire Strip Length: 7mm
• RoHS Compliant: Yes
• ECCN: EAR99
