Same model may have multiple batches, images only for reference.

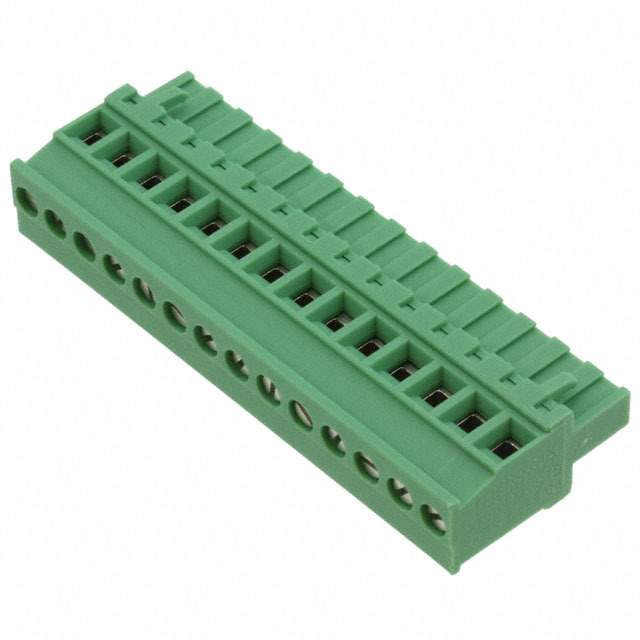

1792362 Real Image
Same model may have multiple batches, images only for reference.

1792362

Part No 1792362
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 14POS 5.08MM / 14 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 14
Positions Per Level 14
Number of Levels 1
Pitch 0.200" (5.08mm)
Plug Wire Entry 90°
Termination Style Screw - Rising Cage Clamp
Mounting Free Hanging (In-Line)
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge or Range - mm2 0.2-2.5mm2
Color Green
Contact Mating Finish Tin
Features Retention Latches (Wire Side)
Material Flammability Rating UL94 V-0
Screw Size M3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length 7mm
Housing Material Polyamide (PA), Nylon
Insulation Height 1.024" (26.01mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 1792362-NDR,277-6090,MVSTBR2,5/14-ST-5,08,1792362-ND
Standard Package 50
Win Source Part Number 1332246-1792362
Ultra Librarian 3D Model Ultra Librarian 1792362 CAD Model

Description

The Phoenix Contact 1332246-1792362 is a female socket plug connector designed for use in electronic applications.

  • Positions: 14
  • Positions per Level: 14
  • Pitch: 0.200 inches (5.08mm)
  • Plug Wire Entry: 90-degree
  • Termination Style: screw-rising cage clamp
  • Current Rating (IEC): 12A
  • Current Rating (UL): 15A
  • Voltage Rating (IEC): 630V
  • Voltage Rating (UL): 300V
  • Contact Mating Finish: tin
  • Housing Material: polyamide (PA) nylon
  • UL94 Flammability Rating: V-0
  • Packaging: bulk
  • Mounting Style: free hanging (in-line)
  • Retention Latches: (wire side)
  • Torque Screw: 0.5-0.6 Nm (4.4-5.3 Lb-In)
  • Screw Size: M3
