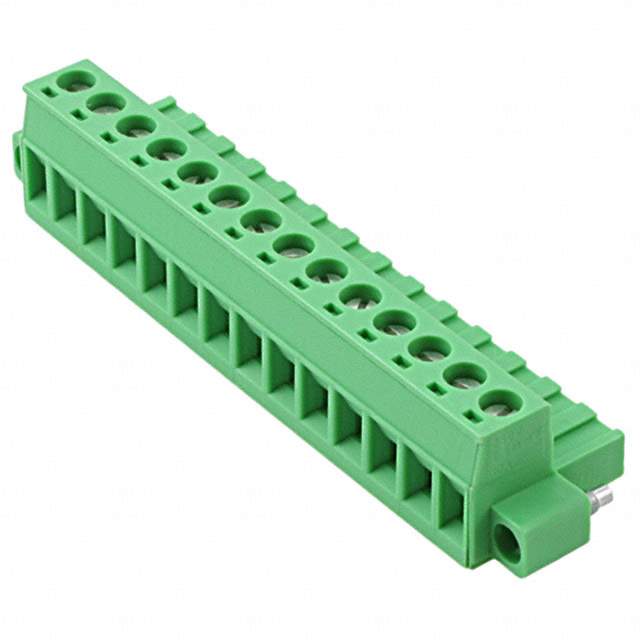

Same model may have multiple batches, images only for reference.

1778108

Name: 1778108
Brand: Phoenix Contact
SKU: 1332252
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1778108
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 14POS STR 5.08MM / 14 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	14
Positions Per Level	14
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591" (15.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	1778108-NDR,277-6097,1778108-ND,MSTB2,5/14-STF-5,08
Standard Package	50
Win Source Part Number	1332252-1778108
Ultra Librarian 3D Model	Ultra Librarian 1778108 CAD Model

Description

The Phoenix Contact 1332252-1778108 is a screw rising cage clamp plug female socket connector that is used in interconnects and terminal blocks.

Positions per Level: 14
Number of Levels: 1
Pitch: 0.200 inches (5.08mm)
Current Rating (IEC): 12A
Current Rating (UL): 15A
Voltage Rating (IEC): 630V
Voltage Rating (UL): 300V
Wire Gauge Range: 12-30 AWG
Wire Gauge Range: 0.2-2.5mm2
Contact Mating Finish: tin
Housing Material: polyamide (PA) and nylon
RoHS Compliant: yes
Standard Package: 50
Mounting Style: free hanging (in-line)
Insulation Height: 0.591 inches (15.00mm)
