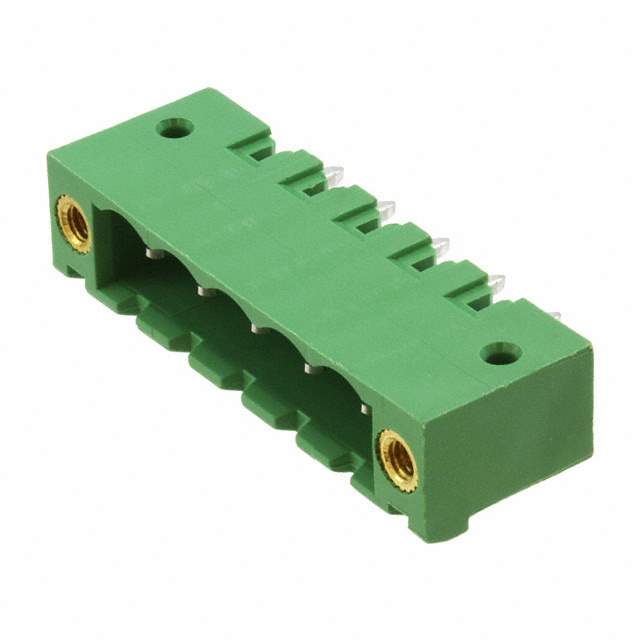

The Phoenix Contact 1332268-1777109 is a shrouded male pin header connector that comes with a bulk packaging.

• Position Configuration: 5-position
• Positions per Level: 5
• Pitch: 0.200" (5.08mm)
• Header Orientation: vertical
• Termination Style: solder
• Current Rating: 12A
• Voltage Rating (IEC): 630V
• Voltage Rating (UL): 300V
• Color: green
• Contact Mating Finish: tin
• Housing Material: polybutylene terephthalate (PBT)
• Material Flammability Rating: UL94 V-0
• Mounting Orientation: through-hole
• Features: mating and mounting flanges
• Insulation Height: 0.472" (12.00mm)
• Contact Tail Length: 0.154" (3.90mm)
• RoHS3 Compliant: yes
