Same model may have multiple batches, images only for reference.

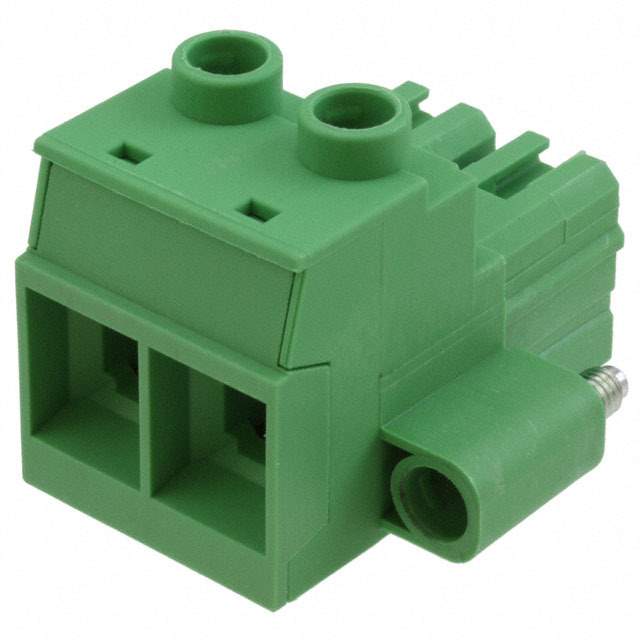

1762592 Real Image
Same model may have multiple batches, images only for reference.

1762592

Part No 1762592
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Pluggable Terminal Block, 2, 1 Kv, 125 A, 15 Mm, 20 Awg, 2 Awg Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Green
Connector Type Screw, Socket
Contact Material Silver
Contact Plating Silver
Current 125 A
Current Rating 125 A
Depth 40 mm
Flammability Rating UL94 V-0
Gender Female
Height 52 mm
Housing Color Green
Housing Material Polyamide
Length 40 mm
Material Polyamide, Silver
Mount Free Hanging
Number of Contacts 2
Number of Levels 1
Number of Positions 2
Number of Positions Per Level 2
Number of Rows 1
Pitch 15 mm
RoHS Compliant
Termination Screw
Voltage 1 kV
Voltage Rating 1 kV
Voltage Rating (AC) 1 kV
Width 54.4 mm
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 2 AWG
Win Source Part Number 1135862-1762592
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1762592 CAD Model

Description

The 1135862-1762592 is a terminal block manufactured by Phoenix Contact.

  • Pitch: 15 mm
  • Number of Positions: 2
  • Number of Levels: 1
  • Contact Material: Silver
  • Voltage Rating: 1 kV
  • Current Rating: 125 A
  • Length: 40 mm
  • Height: 52 mm
  • Width: 54.4 mm
  • Materials: Polyamide and Silver
  • RoHS Compliant: Yes
