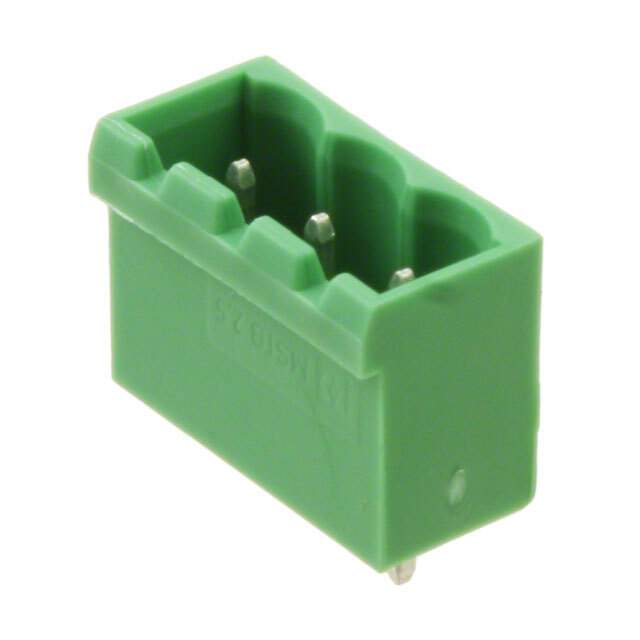

The Phoenix Contact 1332285-1755529 is a shrouded male pin header connector that comes with a bulk packaging.

• Positions: 3
• Positions Per Level: 3
• Pitch: 0.197" (5.00mm)
• Header Orientation: Vertical
• Termination Style: Solder
• Current Rating (IEC): 12A
• Voltage Rating (IEC): 400V
• Voltage Rating (UL): 300V
• Color: Green
• Contact Mating Finish: Tin
• Housing Material: Polyamide (PA) and Nylon
• Material Flammability Rating: UL94 V-0
• Mounting Orientation: Through-Hole
• Insulation Height: 0.472" (12.00mm)
• Contact Tail Length: 0.154" (3.90mm)
• RoHS Compliant: Yes
