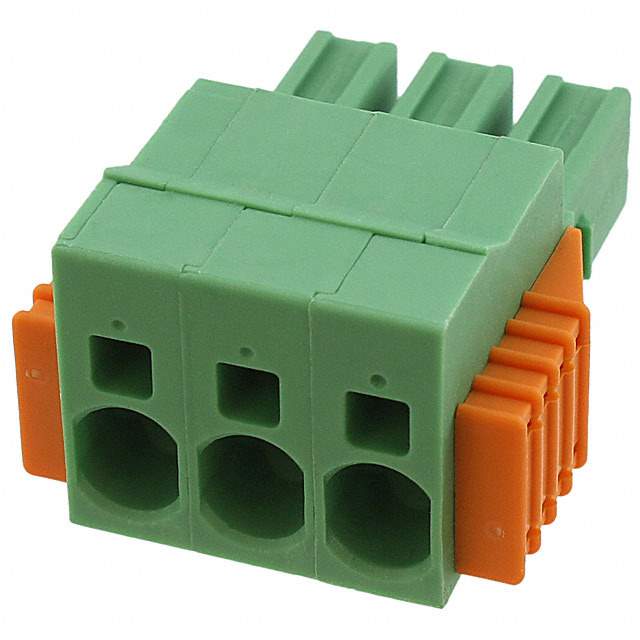

Same model may have multiple batches, images only for reference.

1718494

Name: 1718494
Brand: Phoenix Contact
SKU: 1332258
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1718494
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 3POS STR 7.62MM / 3 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.300" (7.62mm)
Plug Wire Entry	180°
Termination Style	Screwless - Push-In Spring
Mounting	Free Hanging (In-Line)
Current - IEC	41A
Voltage - IEC	1 kV
Current - UL	35 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	8-24 AWG
Wire Gauge or Range - mm2	0.2-10mm²
Color	Green
Contact Mating Finish	Tin
Features	Latch Lock
Material Flammability Rating	UL94 V-0
Wire Strip Length	15mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.780" (19.80mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	SPC53STCL762,277-7560,SPC5/3-STCL-7,62
Standard Package	50
Win Source Part Number	1332258-1718494
Ultra Librarian 3D Model	Ultra Librarian 1718494 CAD Model

Description

The Phoenix Contact 1145720 is a plug female socket terminal block.

Color: green
Latch Lock Feature: yes
Plug Wire Entry: 180 degrees
Termination Style: screwless - push-in spring
Current Rating: 41A
Voltage Rating (IEC): 1 kV
Voltage Rating (UL): 600 V
Wire Gauge Range: 8-24 AWG and 0.2-10mm²
Contact Mating Finish: tin
Housing Material: polyamide (PA), nylon
Popularity: medium
