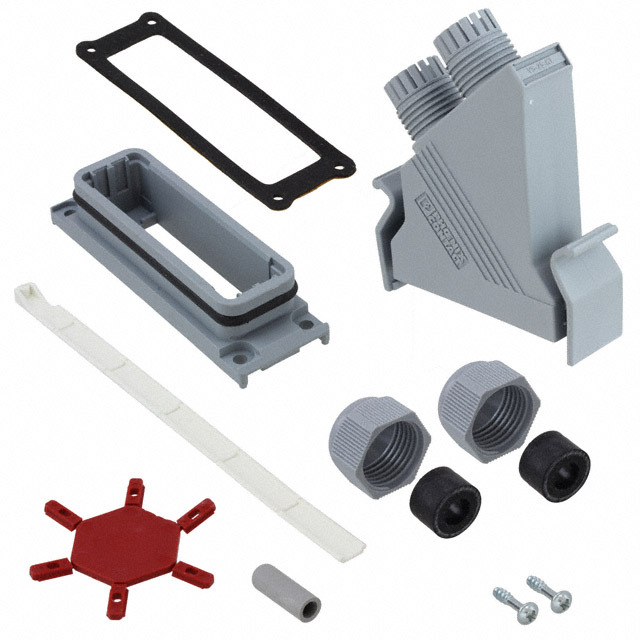

1689129 Phoenix Contact – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

1689129

Part No 1689129
Manufacturer Phoenix Contact
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 15POS 45DEG GRAY
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Accessory Type Backshell with Panel Frame
Number of Positions 15
Compatible Shell Size A
Compatible D-Sub Size 15pos and HD26pos
Cable Type Round
Cable Exit 45°, Dual
Shielding Unshielded
Primary Material Plastic
Material Polyamide (PA), Nylon
Hardware Mounting Gasket
Features Dust Tight/Waterproof (IP67)
Color Gray
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1623805-1689129
Ultra Librarian 3D Model Ultra Librarian 1689129 CAD Model

Description

N
