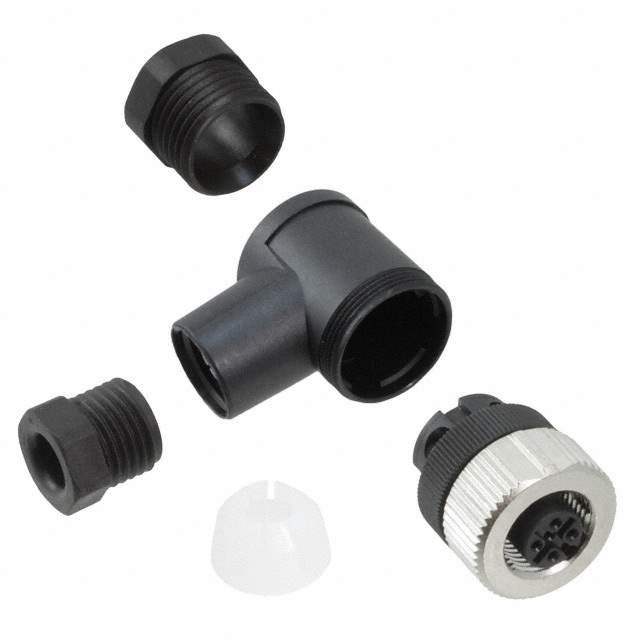

1543058 Real Image
Same model may have multiple batches, images only for reference.

1543058

Part No 1543058
Manufacturer Phoenix Contact
Catalog Circular Connectors
Description Conn M12 Circular SKT 4 POS Crimp RA Cable Mount 4 Terminal 1 Port
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Metal
Connector Type Receptacle
Contact Gender Female
Contact Material Brass
Contact Plating Brass
Current Rating 4 A
Fastening Type Push, Twist
Gender Receptacle
Housing Material Plastic
Lead Free Lead Free
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Free Hanging
Number of Contacts 4
Number of Positions 4
Packaging Bulk
Ratings Dust Tight, IP67, Waterproof
REACH SVHC Unknown
RoHS Compliant
Termination Screw
Thread Size M12
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Weight 25.04 g
Win Source Part Number 1161938-1543058
Categories Circular Connectors
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1543058 CAD Model

Description

Phoenix Contact 1161938-1543058 is a circular connector that is designed to be used in electronic devices that require a dust-tight, IP67, and waterproof rating.

  • Supply and Demand Status: Limited
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Operating Temperature: -40 °C to 85 °C
  • Housing Material: Plastic
  • Contact Plating: Brass
  • Weight: 25.04 g
  • Thread Size: M12
  • Contacts: 4
  • Type: Female Receptacle
