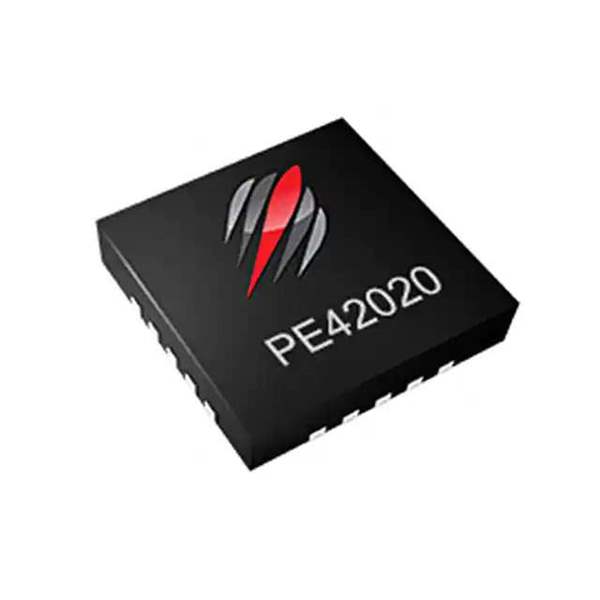

PE42020A-X Real Image
Same model may have multiple batches, images only for reference.

PE42020A-X

Part No PE42020A-X
Manufacturer Peregrine Semiconductor
Catalog RF Switches
Description IC RF SWITCH SPDT 8GHZ 20QFN
Datasheet
PE42020A-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr Peregrine Semiconductor
Series UltraCMOS®
Package Tape & Reel
Product Status Active
Topology Absorptive
Circuit SPDT
Frequency Range 0Hz ~ 8GHz
Isolation 42dB
Insertion Loss 1.1dB
Test Frequency 6GHz
P1dB 38dBm
IIP3 62dBm
Impedance 50Ohm
Voltage - Supply 10V ~ 17V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 20-VFQFN Exposed Pad
Supplier Device Package 20-QFN (4x4)
Base Product Number PE42020
Standard Package 500 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 852241-PE42020A-X
Ultra Librarian 3D Model Ultra Librarian PE42020A-X CAD Model

Description

The PE42020A-X is an UltraCMOS RF switch from Peregrine Semiconductor.

  • Frequency Range: 0Hz to 8GHz
  • Insertion Loss: 1.1dB
  • Isolation: 42dB
  • Switch Type: SPDT (Single-Pole, Double-Throw)
  • Topology: Absorptive
  • IIP3: 62dBm
  • P1dB: 38dBm
  • Voltage Supply: 10V to 17V
  • Mounting Type: Surface Mountable
  • Package: 20-VFQFN exposed pad
  • Product Status: Active
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
