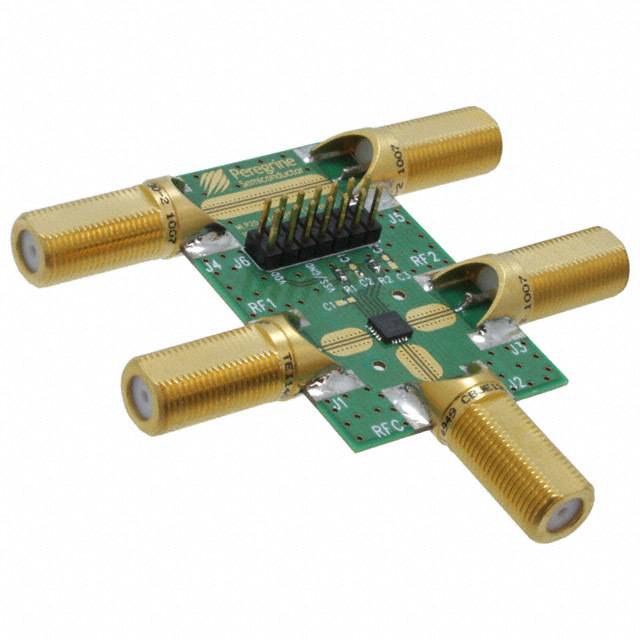

EK42742-03 Peregrine Semiconductor
Same model may have multiple batches, images only for reference.

EK42742-03

Part No EK42742-03
Manufacturer Peregrine Semiconductor
Catalog RF Evaluation and Development Kits, Boards
Description KIT EVAL FOR PE42742 RF SWITCH / UltraCMOS? PE42742 Switch, SPDT 5MHz ~ 2.2GHz Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - RF Evaluation and Development Kits, Boards
Mfr Peregrine Semiconductor
Series UltraCMOS®
Package Box
Product Status Active
Type Switch, SPDT
Frequency 5MHz ~ 2.2GHz
For Use With/Related Products PE42742
Supplied Contents Board(s)
Base Product Number EK42742
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 791632-EK42742-03
Ultra Librarian 3D Model Ultra Librarian EK42742-03 CAD Model

Description

The 791632-EK42742-03 is a development board kit from Peregrine Semiconductor.

  • Series: UltraCMOS™
  • Switch Type: SPDT
  • Frequency Range: 5MHz to 2.2GHz
  • Board: Single
  • Compatible With: PE42742
