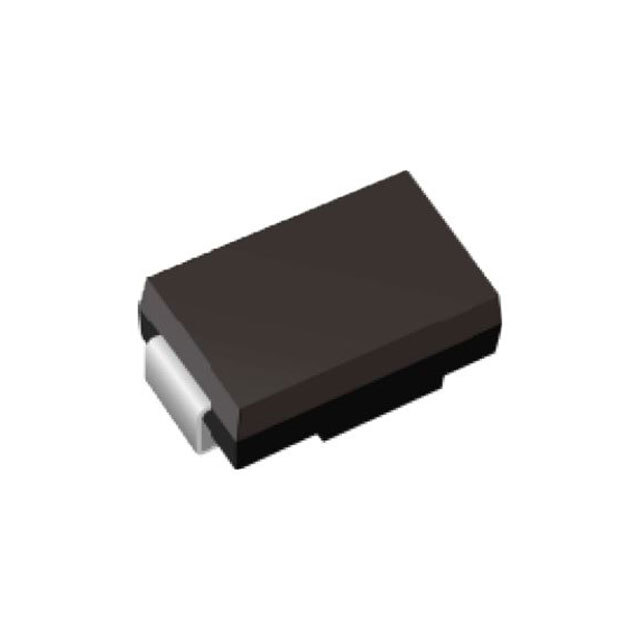

Same model may have multiple batches, images only for reference.
SX34_R1_00001 Panjit – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SX34_R1_00001

Part No SX34_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description Diode 40 V 3A Surface Mount DO-214AC (SMA)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Panjit International Inc.
Packaging Reel - TR
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 40 V
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SX34
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1477488-SX34_R1_00001
Ultra Librarian 3D Model Ultra Librarian SX34_R1_00001 CAD Model
