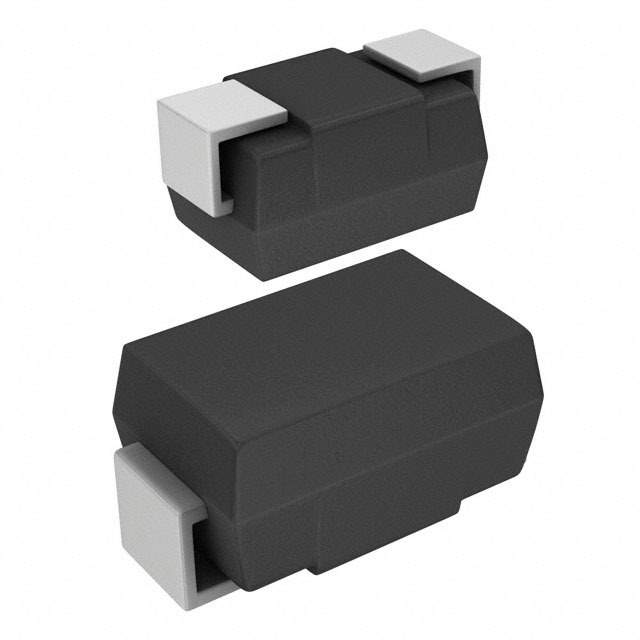

SS14AL_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

SS14AL_R1_00001

Part No SS14AL_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description LOW VF SURFACE MOUNT SCHOTTKY RE  /  Diode Schottky 45 V 1A Surface Mount SMA (DO-214AC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panjit International Inc.
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 450 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 45 V
Mounting SMD (SMT)
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
Operating Temperature - Junction -55°C ~ 125°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-SS14AL_R1_00001TR,3757-SS14AL_R1_00001CT,3757-SS14AL_R1_00001DKR
Standard Package 1,800
Win Source Part Number 1153651-SS14AL_R1_00001
Ultra Librarian 3D Model Ultra Librarian SS14AL_R1_00001 CAD Model

Description

The Schottky diode 1153651-SS14AL_R1_00001 is a fast recovery diode with a maximum DC reverse voltage of 45V and an average rectified current of 1A.

  • Type: Schottky diode
  • Maximum DC Reverse Voltage: 45V
  • Average Rectified Current: 1A
  • Voltage Forward: 450mV @ 1A
  • Reverse Leakage Current: 100 microamps @ 45V
  • Capacitance @ Vr, F: Not specified
  • Operating Temperature Range: -55°C to 125°C
  • Mounting: DO-214AC, SMA package
  • Supplier Device Package: SMA (DO-214AC)
  • Description: Ideal for use in circuits that require fast switching and low voltage drop.
