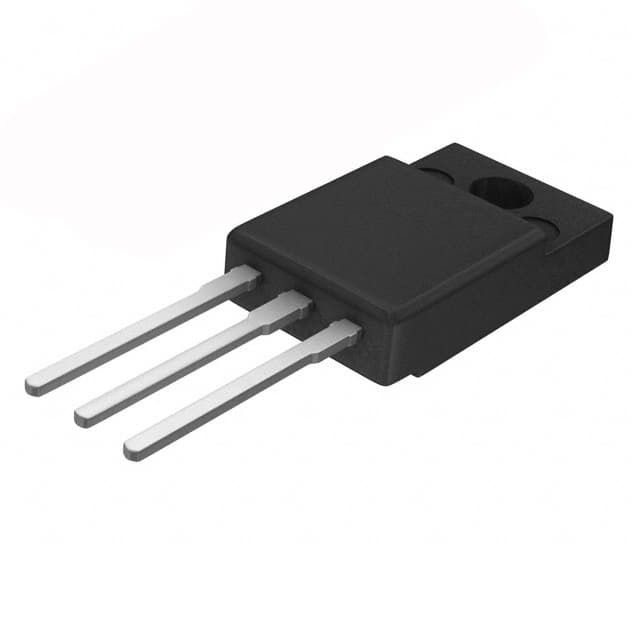

Same model may have multiple batches, images only for reference.

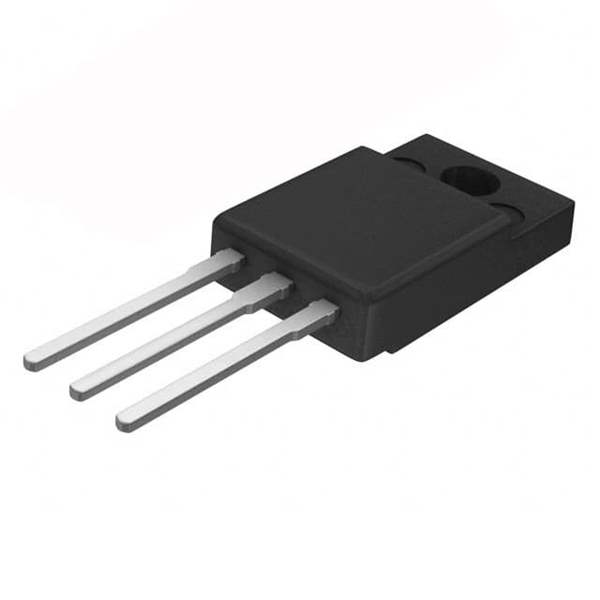

SBT20120LFCT_T0_00001 Panjit
Same model may have multiple batches, images only for reference.

SBT20120LFCT_T0_00001

Part No SBT20120LFCT_T0_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description ULTRA LOW VF SCHOTTKY BARRIER RE / Diode Array 1 Pair Common Cathode Schottky 120 V 10A Through Hole TO-220-3 Full Pack
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 120 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 820 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 20 µA @ 120 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Supplier Device Package ITO-220AB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-SBT20120LFCT_T0_00001
Standard Package 50
Win Source Part Number 1211503-SBT20120LFCT_T0_00001
Ultra Librarian 3D Model Ultra Librarian SBT20120LFCT_T0_00001 CAD Model

Description

The SBT20120LFCT Schottky diode is a high-performance rectifier diode that is designed for use in high voltage applications.

  • Diode Type: Schottky, Rectifier
  • Maximum DC Reverse Voltage: 120 V
  • Average Rectified Current: 10A
  • Forward Voltage: 820 mV @ 10A
  • Mounting Type: Through Hole
  • Package: TO-220-3 Full Pack
  • Capacitance: 0.0 F
  • Operating Temperature: -55°C to 150°C
  • Diode Configuration: 1 Pair Common Cathode
