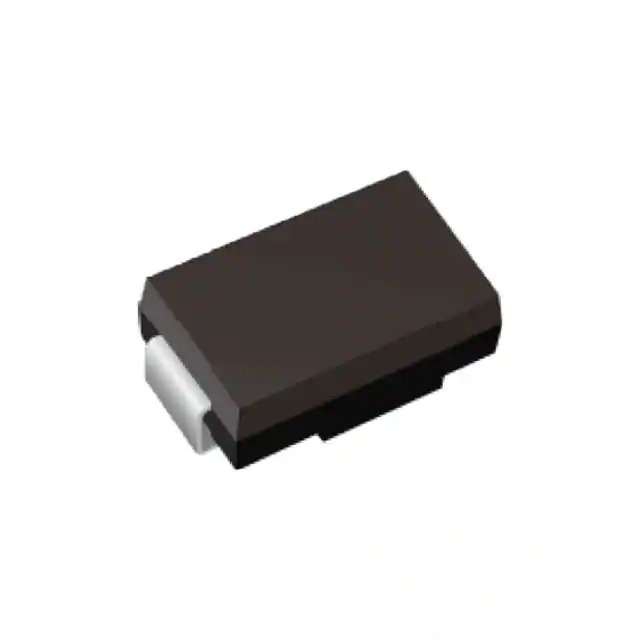

Same model may have multiple batches, images only for reference.
P4SMAJ30CA-AU_R1_000A1 Panjit
Same model may have multiple batches, images only for reference.

P4SMAJ30CA-AU_R1_000A1

Part No P4SMAJ30CA-AU_R1_000A1
Manufacturer Panjit
Catalog TVS - Diodes
Description SMA, TVS
Datasheet
P4SMAJ30CA-AU_R1_000A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Panjit International Inc.
Series Automotive, AEC-Q101, P4SMAJ30CA-AU
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 30V
Voltage - Breakdown (Min) 33.3V
Voltage - Clamping (Max) @ Ipp 48.4V
Current - Peak Pulse (10/1000µs) 8.3A
Power - Peak Pulse 400W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
Base Product Number P4SMAJ30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1379417-P4SMAJ30CA-AU_R1_000A1
Ultra Librarian 3D Model Ultra Librarian P4SMAJ30CA-AU_R1_000A1 CAD Model

Description

The P4SMAJ30CA-AU_R1_000A1 is a TVS diode designed for circuit protection against transient voltage surges, and is manufactured by Panjit International Inc.

  • Series: P4SMAJ30CA-AU
  • Automotive Grade: AEC-Q101 compliant
  • Reverse Standoff Voltage: 30V
  • Breakdown Voltage: 33.3V
  • Peak Pulse Current: 8.3A
  • Power Dissipation: 400W
  • Application: Automotive
  • Protection Against: Electrostatic discharge (ESD) and other transient voltage events
  • Polarity: Bidirectional
  • Clamping Voltage: 48.4V
  • Package: DO-214AC
  • RoHS Compliant: Yes
