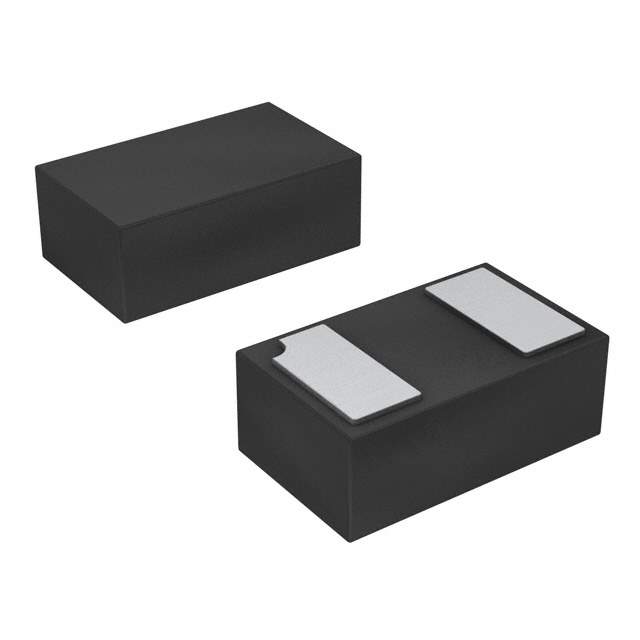

BZT52-B5V6FN2_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

BZT52-B5V6FN2_R1_00001

Part No BZT52-B5V6FN2_R1_00001
Manufacturer Panjit
Catalog Diodes - Zener - Single
Description SURFACE MOUNT SILICON ZENER DIOD / Zener Diode 5.6 V 250 mW ±1.96% Surface Mount 2-DFN (1x0.6)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Panjit International Inc.
Package Tape & Reel
Voltage - Zener (Nom) (Vz) 5.6 V
Tolerance ±1.96%
Power - Max 250 mW
Impedance (Max) (Zzt) 40 Ohms
Current - Reverse Leakage @ Vr 1 µA @ 2 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 0402 (1006 Metric)
Supplier Device Package 2-DFN (1x0.6)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0050
Other Names 3757-BZT52-B5V6FN2_R1_00001DKR,3757-BZT52-B5V6FN2_R1_00001TR,3757-BZT52-B5V6FN2_R1_00001CT
Standard Package 8,000
Win Source Part Number 1110761-BZT52-B5V6FN2_R1_00001
Ultra Librarian 3D Model Ultra Librarian BZT52-B5V6FN2_R1_00001 CAD Model

Description

The 1110761-BZT52-B5V6FN2_R1_00001 diode is a Zener diode that is part of the discrete semiconductor products category. It is packaged in tape and reel, and it is mounted using SMD (SMT) technology.

  • Tolerance: ±1.96%
  • Maximum Power: 250mW
  • Reverse Leakage Current: 1µA @ 2V
  • Voltage Zener (Nom) (Vz): 5.6V
  • Impedance (Max) (Zzt): 40 Ohms
  • Package: 0402 (1006 Metric)
  • Supplier Device Package: 2-DFN (1x0.6)
  • Operating Temperature Range: -55°C to 150°C
