Same model may have multiple batches, images only for reference.

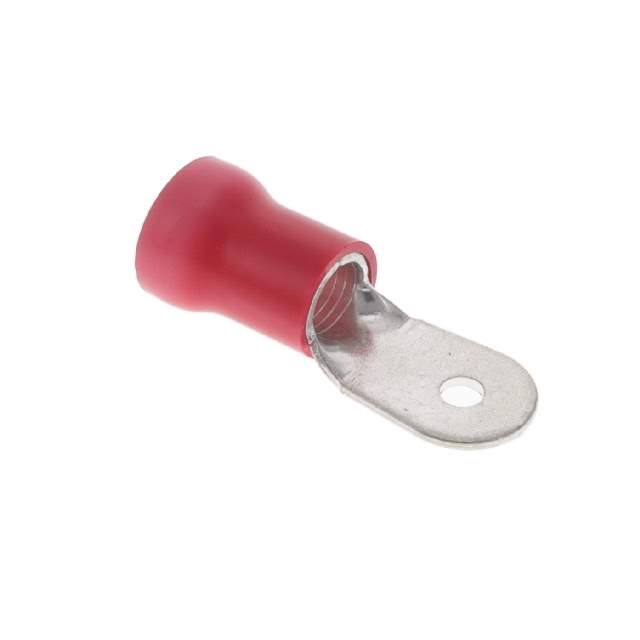

PV2-10RX-XY Real Image
Same model may have multiple batches, images only for reference.

PV2-10RX-XY

Part No PV2-10RX-XY
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING D-SHAPE 2AWG #10 CRIMP / Ring Terminal Connector 10 Stud D-Shaped 2 AWG Crimp
Datasheet
PV2-10RX-XY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type D-Shaped
Stud/Tab Size 10 Stud
Thickness 0.060" (1.52mm)
Width - Outer Edges 0.680" (17.27mm)
Length - Overall 1.940" (49.28mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 2 AWG
Insulation Insulated
Features Brazed Seam
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.632" (16.05mm)
Material - Insulation Vinyl
Base Product Number PV2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 07498369486,298-20300,PV2-10RX-XY-ND
Standard Package 100
Win Source Part Number 1168850-PV2-10RX-XY
Ultra Librarian 3D Model Ultra Librarian PV2-10RX-XY CAD Model

Description

The PV2-10RX-XY is a ring connector terminal manufactured by Panduit Corp. It belongs to the Pan-Term® series and comes in a bulk package.

  • Terminal Type: Ring
  • Stud/Tab Size: 10 Stud
  • Wire Gauge: 2 AWG
  • Thickness: 0.060" (1.52mm)
  • Width: 0.680" (17.27mm)
  • Overall Length: 1.940" (49.28mm)
  • Insulation: Vinyl
  • Insulation Diameter: 0.632" (16.05mm)
  • Contact Material: Copper
  • Contact Finish: Tin
  • Termination: Crimp
  • Feature: Brazed Seam
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.90.4000
  • Base Product Number: PV2
  • Status: Obsolete
