Same model may have multiple batches, images only for reference.

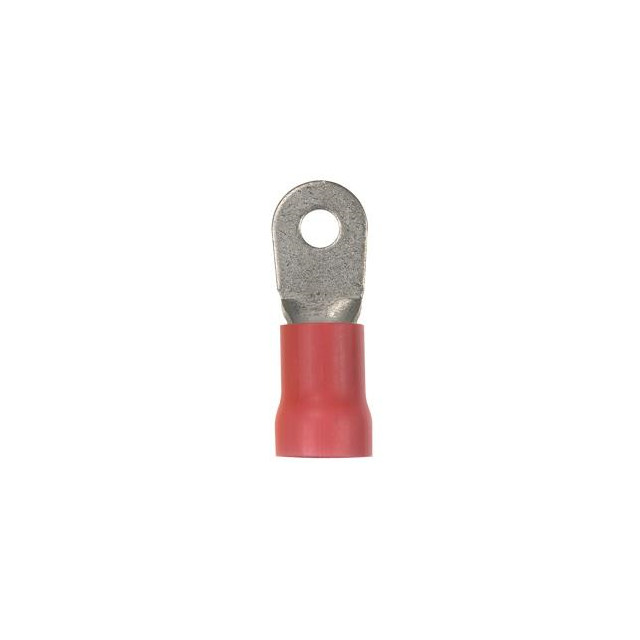

PV2-10R-XY Real Image
Same model may have multiple batches, images only for reference.

PV2-10R-XY

Part No PV2-10R-XY
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING FLAT 2AWG #10 CRIMP / Ring Terminal Connector 10 Stud Flat Sided 2 AWG Crimp
Datasheet
PV2-10R-XY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Terminal Type Flat Sided
Stud/Tab Size 10 Stud
Thickness 0.060" (1.52mm)
Width - Outer Edges 0.680" (17.27mm)
Length - Overall 1.960" (49.78mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 2 AWG
Insulation Insulated
Features Brazed Seam
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.560" (14.22mm)
Material - Insulation Vinyl
Base Product Number PV2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 298-23289,PV2-10R-XY-ND,PV2-10R-X-ND,PV2-10R-X
Standard Package 10
Win Source Part Number 995281-PV2-10R-XY
Ultra Librarian 3D Model Ultra Librarian PV2-10R-XY CAD Model

Description

The Panduit Corp PV2-10R-XY is a ring connector terminal belonging to the Pan-Term series.

  • Package: Bulk
  • Seam: Brazed
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 2 AWG
  • Contact Material: Copper
  • Insulation Material: Vinyl
  • Insulation Diameter: 0.560" (14.22mm)
  • Stud/Tab Size: 10 stud
  • Mounting Type: Free Hanging (In-Line)
  • Thickness: 0.060" (1.52mm)
  • Width - Outer Edges: 0.680" (17.27mm)
  • Length - Overall: 1.960" (49.78mm)
  • REACH: REACH unaffected
  • HTSUS: 8536.90.4000
