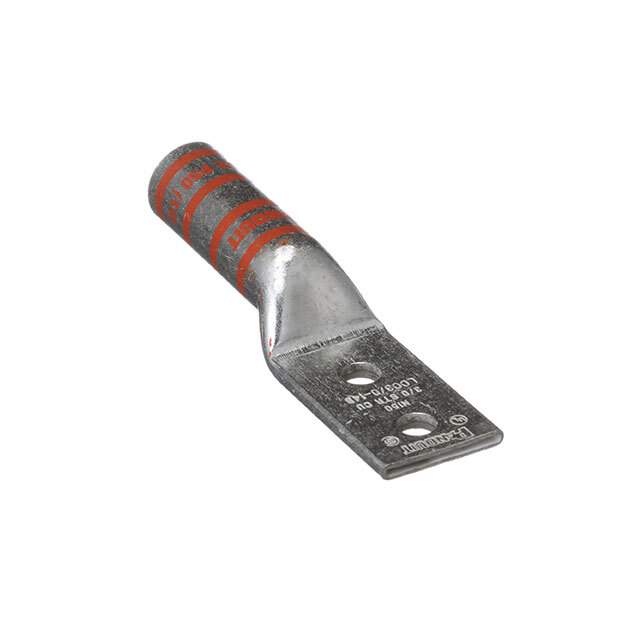

LCC3/0-14B-X Real Image
Same model may have multiple batches, images only for reference.

LCC3/0-14B-X

Part No LCC3/0-14B-X
Manufacturer Panduit Corp
Catalog Rectangular Connectors
Description CONN TERM RECT TONG 3/0 AWG #1/4 / Terminal Connector Rectangular Rectangular Tongue 3/0 AWG 1/4 Stud
Datasheet
LCC3/0-14B-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr Panduit Corp
Series Pan-Lug®
Package Bulk
Product Status Obsolete
Terminal Type Rectangular Tongue
Stud/Tab Size 1/4 Stud
Terminal Style Two Stud Holes
Tab Thickness 0.130" (3.30mm)
Length - Overall 3.560" (90.42mm)
Width - Outer Edges 0.960" (24.38mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Barrel
Wire Gauge 3/0 AWG
Insulation Non-Insulated
Color Orange
Contact Finish Electro-Tin
Contact Material Copper
Diameter - Barrel ID 0.510" (12.95mm)
Diameter - Barrel OD 0.640" (16.26mm)
Diameter - Ring ID 0.270" (6.86mm)
Base Product Number LCC3
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 07498338280,298-22128,LCC3/0-14B-X-ND
Standard Package 1
Win Source Part Number 1037921-LCC3/0-14B-X
Ultra Librarian 3D Model Ultra Librarian LCC3/0-14B-X CAD Model

Description

The LCC3/0-14B-X terminal is a rectangular connector manufactured by Panduit Corp.

  • Wire Gauge: 3/0 AWG
  • Stud/Tab Size: 1/4 stud
  • Terminal Type: Rectangular tongue
  • Packaging: Bulk
