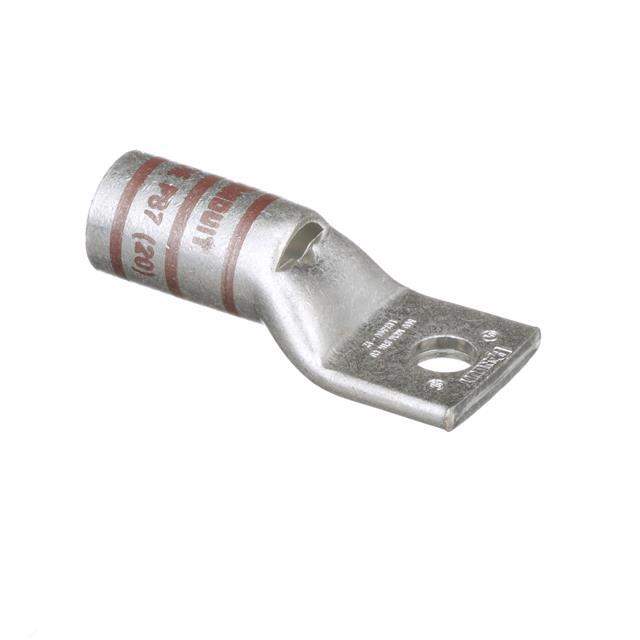

Same model may have multiple batches, images only for reference.

LCA500-12-6

Name: LCA500-12-6
Brand: Panduit Corp
SKU: 989897
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LCA500-12-6
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT TONG 500 MCM #1/2 / Terminal Connector Rectangular Rectangular Tongue 500MCM (kcmil) 1/2 Stud
Datasheet	LCA500-12-6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	Pan-Lug®
Package	Bulk
Terminal Type	Rectangular Tongue
Stud/Tab Size	1/2 Stud
Terminal Style	Single Stud Hole
Tab Thickness	0.220" (5.59mm)
Length - Overall	3.540" (89.92mm)
Width - Outer Edges	1.540" (39.12mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	500MCM (kcmil)
Insulation	Non-Insulated
Color	Brown
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.840" (21.34mm)
Diameter - Barrel OD	1.060" (26.92mm)
Diameter - Ring ID	0.530" (13.46mm)
Base Product Number	LCA500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	07498390064,LCA500-12-6-ND,298-11648
Standard Package	1
Win Source Part Number	989897-LCA500-12-6
Ultra Librarian 3D Model	Ultra Librarian LCA500-12-6 CAD Model

Alternative Products

Description

The Panduit Corp LCA500-12-6 is a rectangular tongue terminal designed for easy crimping and barrel termination.

Type: Rectangular Tongue Terminal
Material: Copper
Contact Finish: Electro-Tin
Insulation: Non-Insulated
Stud/Tab Size: 1/2
Barrel ID: 0.840 inches
Barrel OD: 1.060 inches
Mounting: Free Hanging (In-Line)
Width: 1.540 inches
Length: 3.540 inches
Series: Pan-Lug
Packaging: Bulk
Application: Connectors and Interconnects
