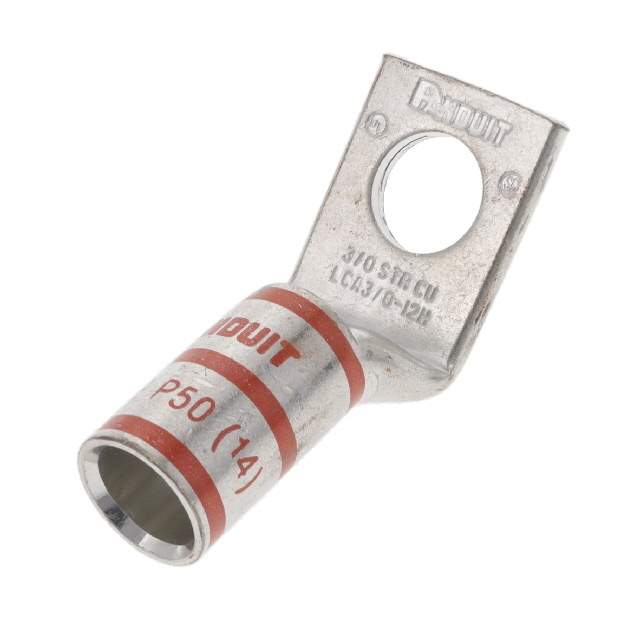

Same model may have multiple batches, images only for reference.

LCA3/0-12H-X

Name: LCA3/0-12H-X
Brand: Panduit Corp
SKU: 771141
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LCA3/0-12H-X
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT TONG 3/0 AWG #1/2 / Lug Terminal (3/0)AWG Copper 56.1mm Tin
Datasheet	LCA3/0-12H-X Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panduit Corp
Series	Pan-Lug
Packaging	Bulk
Terminal Type	Rectangular Tongue
Stud/Tab Size	1/2 Stud
Terminal Style	Single Stud Hole
Tab Thickness	0.130" (3.30mm)
Width - Outer Edges	0.960" (24.38mm)
Mounting	Free Hanging (In-Line), 45° Angle
Termination	Crimp, Barrel
Wire Gauge	3/0 AWG
Insulation	Non-Insulated
Color	Orange
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.510" (12.95mm)
Diameter - Barrel OD	0.640" (16.26mm)
Diameter - Ring ID	0.530" (13.46mm)
Win Source Part Number	771141-LCA3/0-12H-X
Popularity	Medium
Supply and Demand Status	Limited
Family Name	LCA3/0
Introduction Date	July 29, 2004
ECCN	EAR99
Country of Origin	Mexico
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian LCA3/0-12H-X CAD Model

Alternative Products

Description

The Panduit Corp LCA3/0-12H-X is a Pan-Lug series product that is an orange-colored connector with a rectangular tongue terminal type.

Terminal Type: Crimp, Barrel
Contact Finish: Electro-Tin
Wire Gauge: 3/0 AWG
Contact Material: Copper
Mounting Type: Free Hanging (In-Line)
Angle: 45 Degree
Outer Edge Width: 0.960 inches (24.38 mm)
Insulation: Non-Insulated
Tab Thickness: 0.130 inches (3.30 mm)
Stud/Tab Size: 1/2 stud
Terminal Style: Single Stud Hole
Barrel ID Diameter: 0.510 inches (12.95 mm)
Barrel OD Diameter: 0.640 inches (16.26 mm)
Ring ID Diameter: 0.530 inches (13.46 mm)
