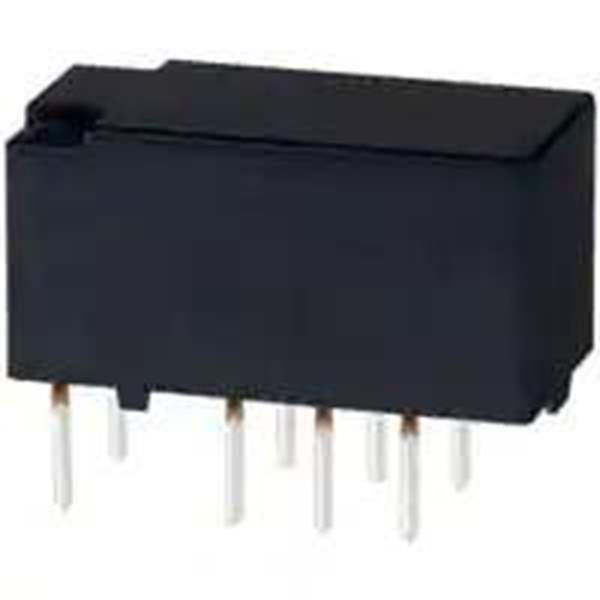

TX2-9V

Name: TX2-9V
Brand: Panasonic
SKU: 848636
Availability: InStock
Rating: 4.93 (73 reviews)

Get a Quote

Part No	TX2-9V
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM DPDT 2A 9VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Signal Relays, Up to 2 Amps
Mfr	Panasonic
Series	TX
Package	Tube
Product Status	Active
Mounting Type	Through Hole
Coil Voltage	9VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2 A
Switching Voltage	220VDC - Max
Coil Current	15.5 mA
Coil Type	Non Latching
Termination Style	PC Pin
Seal Rating	Sealed - Fully
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.9 VDC
Operate Time	4 ms
Release Time	4 ms
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver (Ag), Gold (Au)
Relay Type	Telecom
Coil Resistance	579 Ohms
Base Product Number	TX2-9
Standard Package	40 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.41.0020
Win Source Part Number	848636-TX2-9V
Ultra Librarian 3D Model	Ultra Librarian TX2-9V CAD Model

Alternative Products

Description

The Panasonic 848636-TX2-9V is a DPDT (2 Form C) telecom relay.

Relay Type: Telecom Relay
Contact Form: DPDT (2 Form C)
Coil Voltage: 9VDC
Coil Resistance: 579 Ohms
Contact Rating: 2A
Switching Voltage: 220VDC (Max)
Operate Time: 4ms
Release Time: 4ms
Series: TX
Termination Style: PC Pin
Mounting Type: Through-Hole
Sealed: Fully Sealed
Temperature Range: -40°C to 85°C
Package: Tube
Standard Package Quantity: 40 pcs
Product Status: Active
Manufacturer: Panasonic
