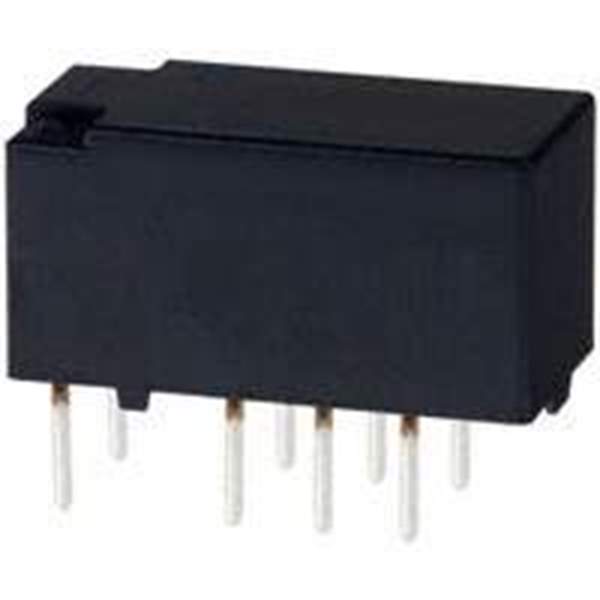

Same model may have multiple batches, images only for reference.

TX2-4.5V-1

Name: TX2-4.5V-1
Brand: Panasonic
SKU: 1101653
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TX2-4.5V-1
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM DPDT 1A 4.5VDC / Telecom Relay DPDT (2 Form C) Through Hole
Datasheet	TX2-4.5V-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays>Signal Relays, Up to 2 Amps
Mfr	Panasonic Electric Works
Series	TX
Package	Tube
Mounting Type	Through Hole
Coil Voltage	4.5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1 A
Switching Voltage	220VDC - Max
Coil Current	31 mA
Coil Type	Non Latching
Termination Style	PC Pin
Seal Rating	Sealed - Fully
Must Operate Voltage	3.38 VDC
Must Release Voltage	0.45 VDC
Operate Time	4 ms
Release Time	4 ms
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver Palladium (AgPd), Gold (Au)
Relay Type	Telecom
Coil Resistance	145 Ohms
Base Product Number	TX2-4
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.41.0020
Other Names	TX245V1,-TX2-4.5V
Standard Package	40
Win Source Part Number	1101653-TX2-4.5V-1
Ultra Librarian 3D Model	Ultra Librarian TX2-4.5V-1 CAD Model

Alternative Products

Description

The Panasonic Electric Works TX2-4 is a DPDT (2 Form C) non-latching telecom relay with a coil voltage of 4.5VDC and a contact rating of 1A.

Switching Voltage: 220VDC max
Temperature Range: -40°C to 85°C
Seal Rating: Sealed, fully-rated
Mounting Type: Through-hole
Coil Resistance: 145 Ohms
Operate Time: 4ms
Release Time: 4ms
Standard Package: 40
Alternative Parts: AGN2004H, AGN200A4H, AGN200A4HZ, G6H-2-F-DC4.5, G6J-2P-Y-DC4.5, and G6J-2FS-Y-TR-DC4.5
Suitable for: Signal relays that require up to 2 Amps
