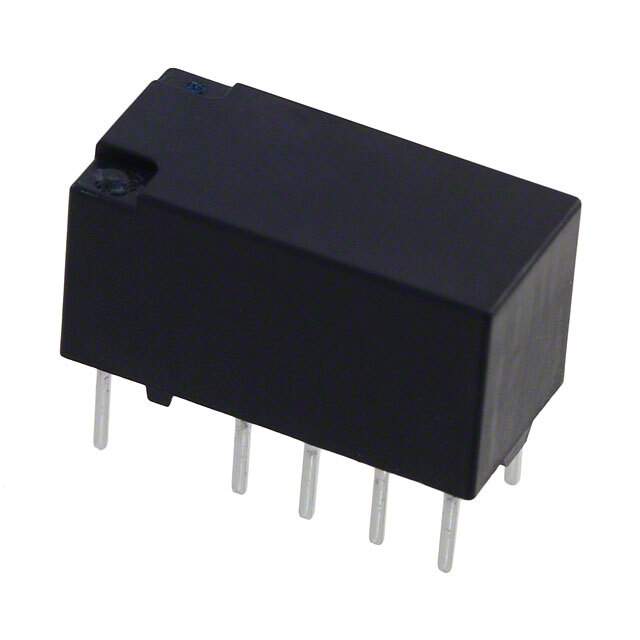

TX2-24V-1

Name: TX2-24V-1
Brand: Panasonic
SKU: 383888
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TX2-24V-1
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM DPDT 1A 24V
Datasheet	TX2-24V-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Tube/Rail
Status	Active
Relay Type	Telecom
Coil Type	Non Latching
Coil Current	5.8mA
Coil Voltage	24VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1A
Switching Voltage	220VDC - Max
Turn On Voltage (Max)	18 VDC
Turn Off Voltage (Min)	2.4 VDC
Operate Time	4ms
Release Time	4ms
Features	Sealed - Fully
Mounting	Through Hole
Termination Style	PC Pin
Coil Power	140 mW
Coil Resistance	4.11 kOhms
Temperature Range - Operating	-40°C to 85°C
Win Source Part Number	213608-TX2-24V-1
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian TX2-24V-1 CAD Model

Alternative Products

Description

The Panasonic Electric Works relay is a DPDT (2 Form C) telecom relay with a switching voltage of 220VDC - Max and contact rating (current) of 1A. It has a coil voltage of 24VDC and coil resistance of 4.11 kOhms.

Switching Voltage: 220VDC - Max
Contact Rating (Current): 1A
Coil Voltage: 24VDC
Coil Resistance: 4.11 kOhms
Sealed: Fully
Mounting Style: Through-Hole
Operate Time: 4ms
Release Time: 4ms
Temperature Range: -40°C to 85°C
Supply and Demand Status: Limited
