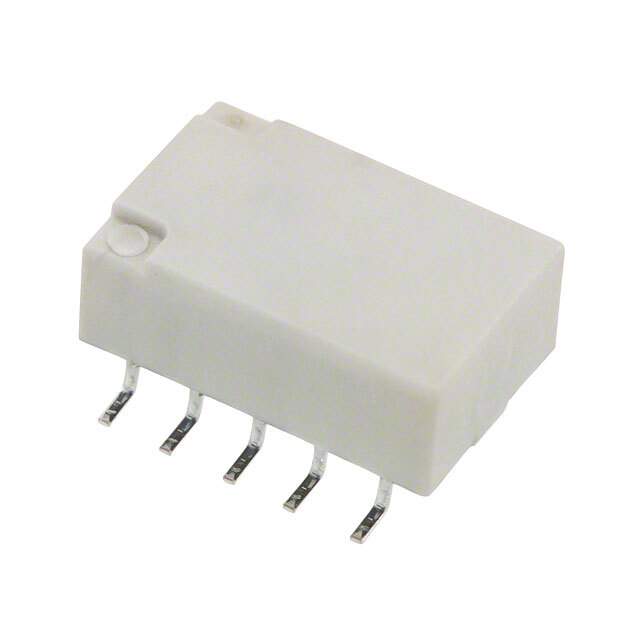

TQ2SA-5V

Name: TQ2SA-5V
Brand: Panasonic
SKU: 380364
Availability: InStock
Rating: 4.93 (342 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TQ2SA-5V
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM DPDT 2A 5V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Tube/Rail
Status	Active
Relay Type	Telecom
Coil Type	Non Latching
Coil Current	28.1mA
Coil Voltage	5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2A
Switching Voltage	125VAC, 220VDC - Max
Turn On Voltage (Max)	3.75 VDC
Turn Off Voltage (Min)	0.5 VDC
Operate Time	4ms
Release Time	4ms
Mounting	SMD (SMT)
Termination Style	Gull Wing
Coil Power	140 mW
Coil Resistance	178 Ohms
Temperature Range - Operating	-40°C to 85°C
Win Source Part Number	034943-TQ2SA-5V
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Industrial, Power Management, Automation & Process Control, Consumer Electronics
Quantity per package	50
Ultra Librarian 3D Model	Ultra Librarian TQ2SA-5V CAD Model

Alternative Products

Description

The Panasonic Electric Works 034943-TQ2SA-5V is a DPDT (2 Form C) type relay with a coil voltage of 5VDC and a coil resistance of 178 Ohms.

Coil Voltage: 5VDC
Coil Resistance: 178 Ohms
Contact Rating: 2A
Switching Voltage: 125VAC, 220VDC - Max
Turn On Voltage: 3.75 VDC
Turn Off Voltage: 0.5 VDC
Operate Time: 4ms
Release Time: 4ms
Temperature Range: -40°C to 85°C
