SP4-DC5V Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SP4-DC5V

Part No SP4-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 10A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Socketable
Coil Voltage 5VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Load - Max Switching 2500VA, 300W
Coil Current 60.2 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 30 ms
Release Time 20 ms
Temperature Range - Operating -50°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency CSA, UR, VDE
Relay Type General Purpose
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1549559-SP4-DC5V
Ultra Librarian 3D Model Ultra Librarian SP4-DC5V CAD Model

Description

N

You May Also Be Interested in

Picture of 6-1415537-3
6-1415537-3
TE Connectivity
RELAY GEN PURPOSE 6PST 8A 18V / General Purpose Relay 6PST-3NO/3NC (3 Form A, 3 Form B) 18VDC Coil Through Hole
Need more? Email Us
Picture of V23008A1015A100
V23008A1015A100
TE Connectivity
RELAY GEN PURPOSE 3PDT 8A 110V
Need more? Email Us
G2R-2A-DC12 Real Image
G2R-2A-DC12
Omron
RELAY GEN PURPOSE DPST 5A 12V
Lowest to $7.7925
KUP-11D15-24 Real Image
KUP-11D15-24
TE Connectivity
KUP Series Panel Plug-in Relay | RELAY GEN PURPOSE DPDT 10A 24V
Lowest to $51.2279
EV250-2B Real Image
EV250-2B
TE Connectivity
RELAY GEN PURPOSE SPST 400A 24V / General Purpose Relay SPST-NO (DM) (1 Form X) 24VDC Coil Chassis Mount
Need more? Email Us
G5NB1AEDC12NA Real Image
G5NB1AEDC12NA
Omron
Electromechanical Relay SPST-NO 5A 12VDC 720Ohm Through Hole
Lowest to $0.2480

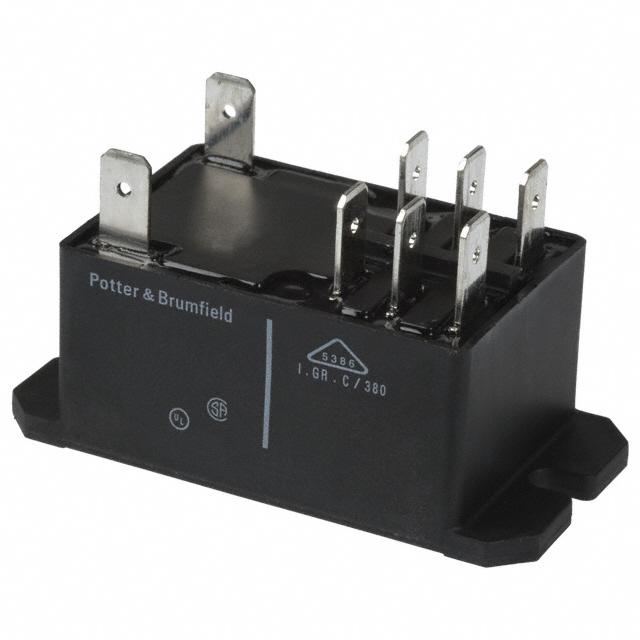

T92S11D12-24 Real Image
