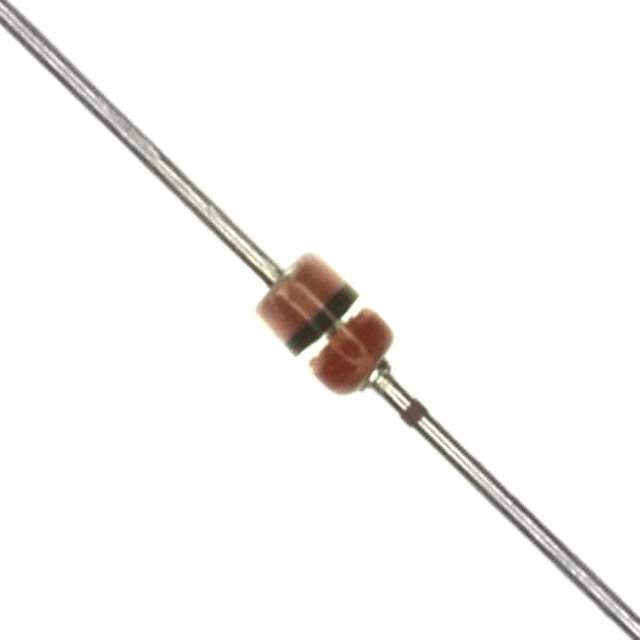

MAZ20560A0G Real Image
Same model may have multiple batches, images only for reference.

MAZ20560A0G

Part No MAZ20560A0G
Manufacturer Panasonic
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.6V 1W DO41 / Zener Diode 5.6 V 1 W ±7% Through Hole DO41-A1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Panasonic Electronic Components
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 5.6 V
Tolerance ±7%
Power - Max 1 W
Impedance (Max) (Zzt) 8 Ohms
Current - Reverse Leakage @ Vr 20 µA @ 2 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 200 mA
Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO41-A1
Base Product Number MAZ2056
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0050
Other Names MAZ20560A0GTR,MAZ20560A0GCT
Standard Package 7,000
Win Source Part Number 1156980-MAZ20560A0G
Ultra Librarian 3D Model Ultra Librarian MAZ20560A0G CAD Model

Description

The Panasonic Electronic Components 1156980-MAZ20560A0G is a zener diode with a voltage tolerance of ±7% and a maximum power of 1W.

  • Forward Voltage: 1V @ 200mA
  • Reverse Leakage Current: 20μA @ 2V
  • Zener Voltage: 5.6V
  • Impedance: 8 Ohms
  • Mounting Type: Through-hole
  • Package: DO-204AL, DO-41, Axial
  • Supplier Device Package: DO41-A1
  • Category: Discrete semiconductor products, specifically in diodes - zener - single category
  • Product Status: Obsolete
  • Operating Temperature Range: No specified operating temperature range
  • Manufacturer: Panasonic Electronic Components
