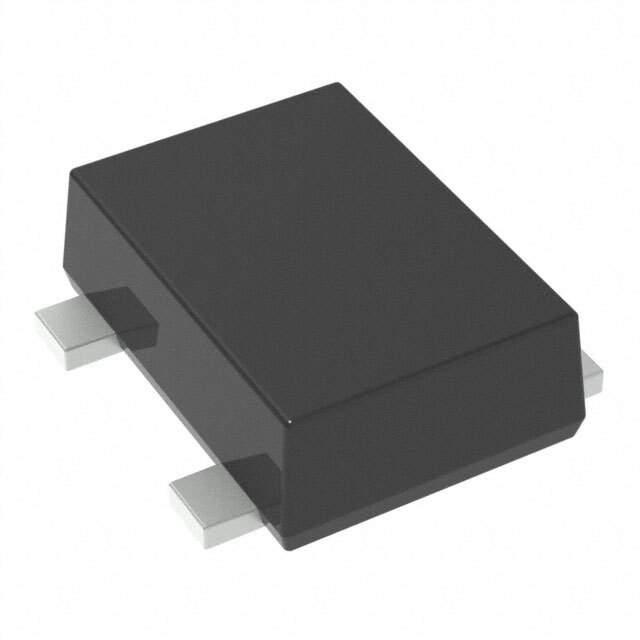

MA4SD05X0L Real Image
Same model may have multiple batches, images only for reference.

MA4SD05X0L

Part No MA4SD05X0L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 45V SSMINI4
Datasheet
MA4SD05X0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 100mA (DC)
Voltage - Forward (Vf) (Max) @ If 600mV @ 100mA
Reverse Recovery Time (trr) 2ns
Current - Reverse Leakage @ Vr 5μA @ 40V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package SSMini4-F1
Win Source Part Number 109135-MA4SD05X0L
Ultra Librarian 3D Model Ultra Librarian MA4SD05X0L CAD Model

Description

The Panasonic Electronic Components 109135-MA4SD05X0L is a Schottky diode type electronic component that is suitable for various applications.

  • Packaging: Reel-TR
  • Mounting: SMD(SMT)
  • Voltage DC Reverse (Vr): 45V
  • Voltage Forward (Vf): 600mV @ 100mA
  • Reverse Recovery Time (trr): 2ns
  • Current Reverse Leakage @ Vr: 5μA @ 40V
  • Operating Temperature: 125°C (Max)
  • Status: Obsolete(EOL)
  • Package: SSMini4-F1
  • Manufacturer: Panasonic Electronic Components
