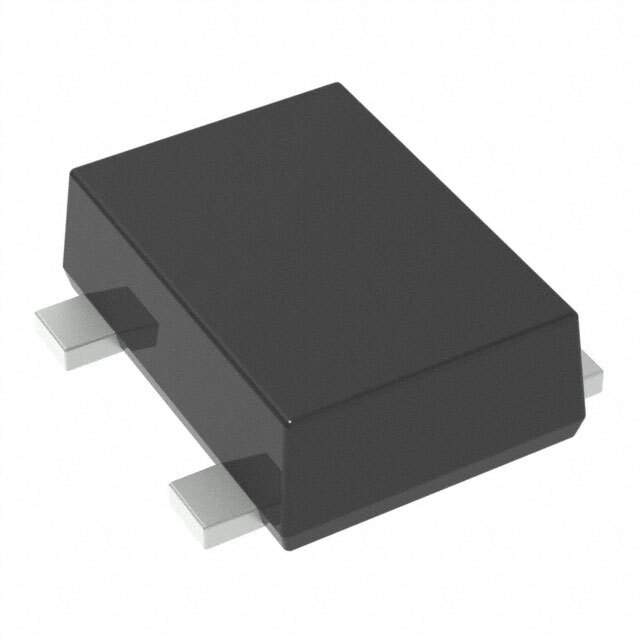

MA4S11100L Real Image
Same model may have multiple batches, images only for reference.

MA4S11100L

Part No MA4S11100L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 80V SSMINI4
Datasheet
MA4S11100L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) (per Diode) 100mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.2V @ 100mA
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 100nA @ 75V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package SSMini4-F1
Win Source Part Number 099336-MA4S11100L
Ultra Librarian 3D Model Ultra Librarian MA4S11100L CAD Model

Description

The MA4S11100L is a Schottky diode manufactured by Panasonic Electronic Components.

  • Voltage - DC Reverse (Vr) (Max): 80V
  • Voltage - Forward (Vf) (Max) @ If: 1.2V @ 100mA
  • Reverse Recovery Time (trr): 3ns
  • Current - Reverse Leakage @ Vr: 100nA @ 75V
  • Diode Configuration: 2 independent
  • Packaging: Reel - TR
  • Status: Obsolete (EOL)
  • Case / Package: SSMini4-F1
