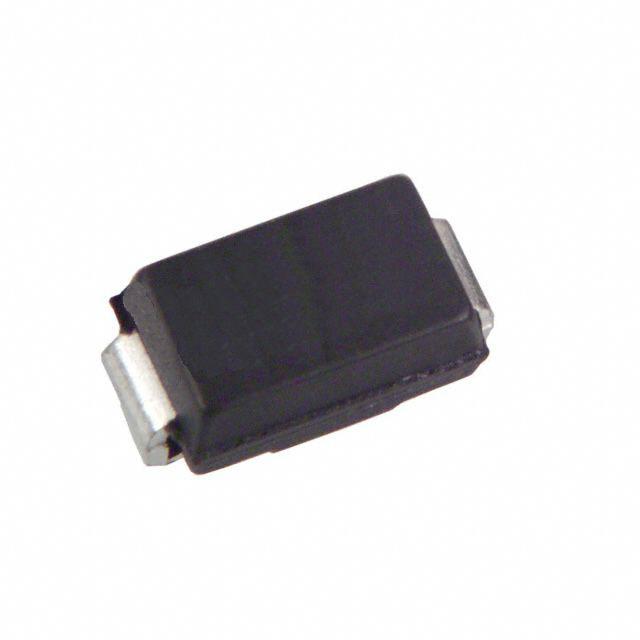

MA2Q70500L Panasonic
Same model may have multiple batches, images only for reference.

MA2Q70500L

Part No MA2Q70500L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 1.5A NMINIP2
Datasheet
MA2Q70500L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 370mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 3mA @ 30V
Capacitance @ Vr, F 90pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package NMiniP2-J1
Operating Temperature - Junction -40°C to 125°C
Win Source Part Number 1065482-MA2Q70500L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MA2Q70500L CAD Model

Description

The Panasonic Electronic Components MA2Q70500L is a Schottky type diode mounted on SMD (SMT) packages.

  • Voltage-DC Reverse (Vr) (Max): 30V
  • Current-Average Rectified (Io): 1.5A
  • Voltage-Forward (Vf) (Max) @ If: 370mV @ 1A
  • Reverse Recovery Time (trr): 50ns
  • Current-Reverse Leakage @ Vr: 3mA @ 30V
  • Capacitance @ Vr, F: 90pF @ 10V, 1MHz
  • Operating Temperature: -40°C to 125°C
  • Status: obsolete (EOL)
  • Popularity: medium
  • Supply and Demand: balanced
