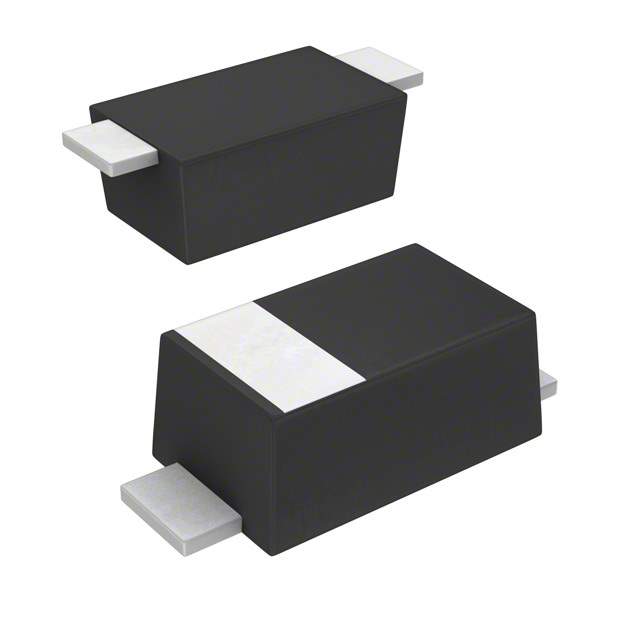

MA22D2300L Real Image
Same model may have multiple batches, images only for reference.

MA22D2300L

Part No MA22D2300L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 25V 1A MINI2
Datasheet
MA22D2300L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 25V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 530mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 40μA @ 20V
Capacitance @ Vr, F 45pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F1
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 098565-MA22D2300L
Ultra Librarian 3D Model Ultra Librarian MA22D2300L CAD Model

Description

The Panasonic Electronic Components 098565-MA22D2300L is a Schottky diode belonging to the discrete semiconductor products category. Manufactured by Panasonic, this device is obsolete (EOL) and is packaged in a Mini2-F1 case/package. Suitable for use in various electronic circuits and systems, it is designed to cater to a fast recovery frequency of 200mA (Io) and can operate at a maximum operating temperature of 150°C (Max).
