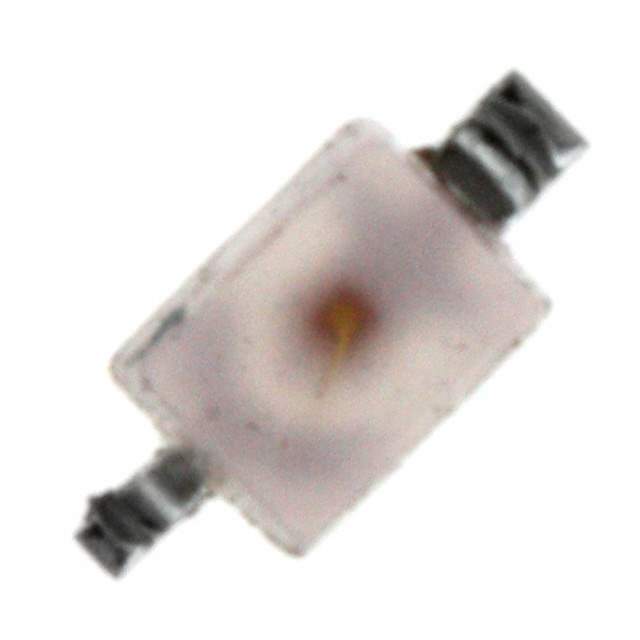

LN1271RTR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Color Red
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 0.4mcd
Lens Style/Size Rectangle with Flat Top, 1.70mm x 1.25mm
Forward Voltage 2.03V
Current - Test 10mA
Mounting SMD (SMT)
Wavelength - Peak 700nm
Case / Package S-GW Type LED
Height (Max) 1.10mm
Win Source Part Number 124226-LN1271RTR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LN1271RTR CAD Model

Description

The LN1271RTR is an obsolete (EOL) electronic component manufactured by Panasonic Electronic Components with the following specifications:

  • Win Source Part Number: 124226-LN1271RTR
  • Type: Red S-GW Type LED
  • Package: Reel - TR
  • Forward Voltage: 2.03V
  • Viewing Angle: -
  • Lens Color: Red
  • Lens Transparency: Diffused
  • Millicandela Rating: 0.4mcd
  • Lens Style/Size: Rectangle with flat top (1.70mm x 1.25mm)
  • Current Test: 10mA
  • Peak Wavelength: 700nm
  • Height (Max): 1.10mm
  • Mounting: SMD (SMT)
