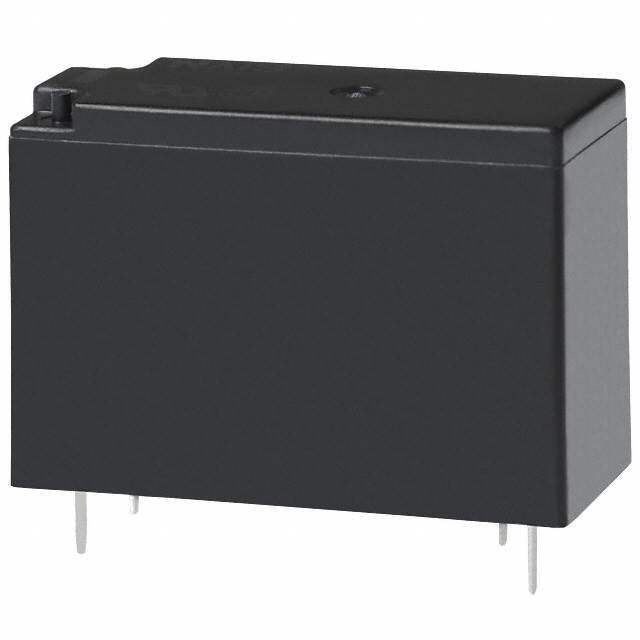

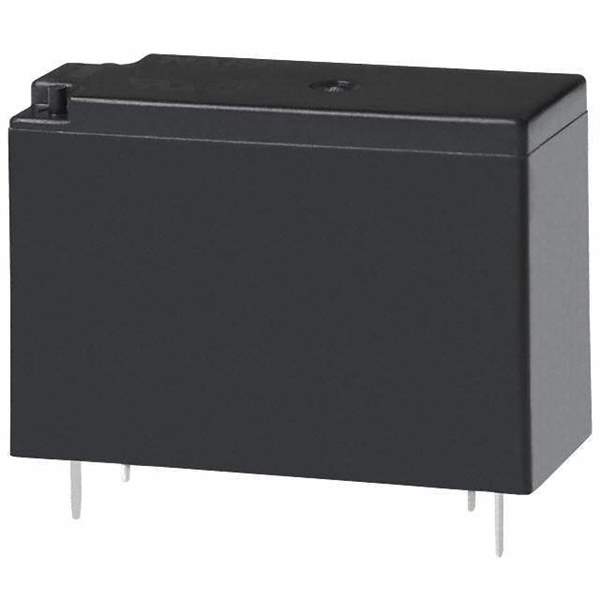

JW1AFSN-DC12V-F Real Image
Same model may have multiple batches, images only for reference.

JW1AFSN-DC12V-F

Part No JW1AFSN-DC12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V
Datasheet
JW1AFSN-DC12V-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 44mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 270 Ohms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 129073-JW1AFSN-DC12V-F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Communications & Networking, Robotics
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JW1AFSN-DC12V-F CAD Model

Description

The Panasonic Electric Works JW1AFSN-DC12V-F relay is a general-purpose, non-latching type relay with a coil voltage of 12VDC and a contact rating of 10A. It features a sealed, fully construction, and a SPST-NO (1 Form A) contact form. The relay has a through-hole mounting style and a coil resistance of 270 Ohms. The operate time is 15ms, and the release time is 5ms. This relay is commonly used in industrial, consumer electronics, communications, and networking applications.
