Same model may have multiple batches, images only for reference.

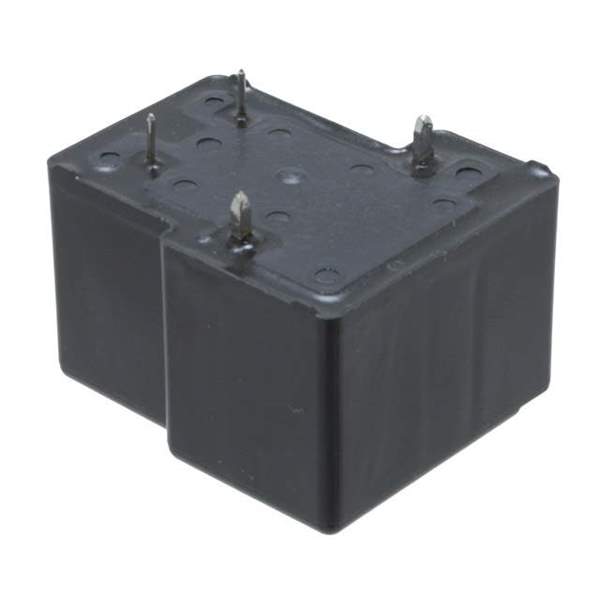

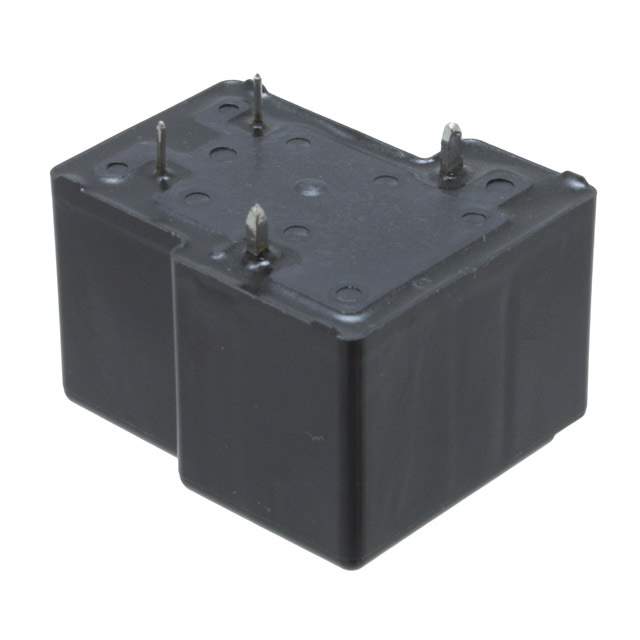

JTN1AG-PA-F-DC12V Real Image
Same model may have multiple batches, images only for reference.

JTN1AG-PA-F-DC12V

Part No JTN1AG-PA-F-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Max
Coil Current 66.7mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 20ms
Release Time 10ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 180 Ohms
Manufacturer Pack Quantity 50
Win Source Part Number 724197-JTN1AG-PA-F-DC12V
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JTN1AG-PA-F-DC12V CAD Model

Description

The Panasonic Electric Works 724197-JTN1AG-PA-F-DC12V is a general-purpose relay that is designed for use in a variety of applications.

  • Coil Voltage: 12VDC
  • Coil Resistance: 180 ohms
  • Contact Rating: 30A
  • Switching Voltage: 277VAC - max
  • Coil Type: Non-latching
  • Contact Form: SPST-NO (1 Form A)
