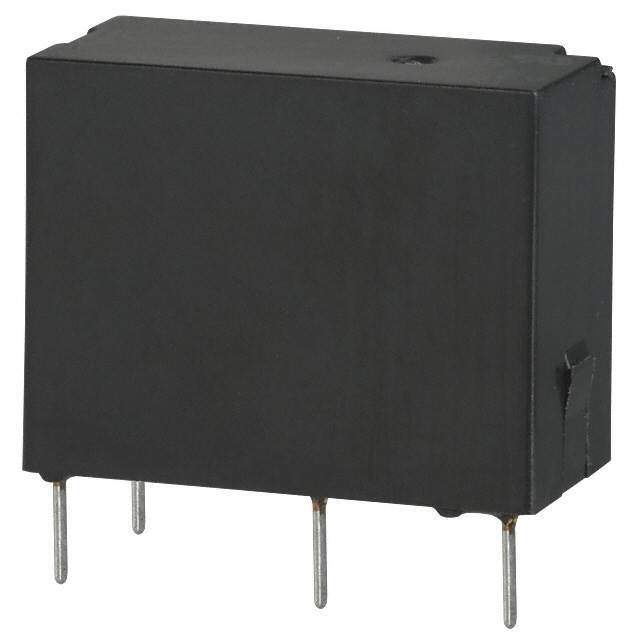

JQ1AP-24V Real Image
Same model may have multiple batches, images only for reference.

JQ1AP-24V

Part No JQ1AP-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description HIGH ELECTRICAL  MECHANICAL NOISE IMMUNITY RELAY | RELAY GEN PURPOSE SPST 10A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 110VDC - Max
Coil Current 8.3mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class E
Must Operate Voltage 19.2 VDC
Must Release Voltage 1.2 VDC
Operate Time 5ms
Release Time 2ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Win Source Part Number 1191738-JQ1AP-24V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JQ1AP-24V CAD Model

Description

The Panasonic Electric Works JQ1AP-24V is a general-purpose non-latching relay with a coil voltage of 24VDC and a coil resistance of 2.88 kOhms.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: silver alloy
  • Contact Rating for Current: 10A
  • Switching Voltage: 250VAC and 110VDC max
  • Operate Time: 5ms
  • Release Time: 2ms
  • Mounting Style: through-hole
  • Termination Style: PC pin
  • Temperature Range for Operating: -40°C to 70°C
  • Obsolete: with a limited supply and demand status.
