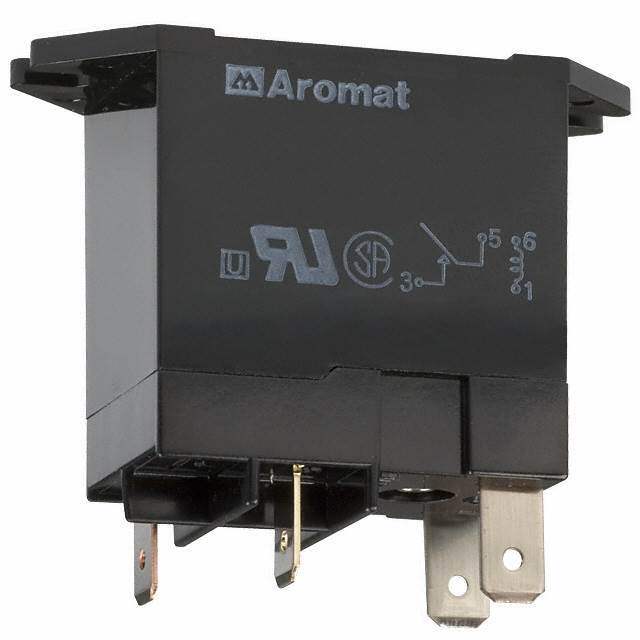

JC1AF-TM-DC6V Real Image
Same model may have multiple batches, images only for reference.

JC1AF-TM-DC6V

Part No JC1AF-TM-DC6V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 15A 6V
Datasheet
JC1AF-TM-DC6V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 150mA
Coil Voltage 6VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 15A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 4.8 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 15ms
Release Time 2ms
Mounting Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Coil Power 900 mW
Coil Resistance 40 Ohms
Temperature Range - Operating -50°C to 60°C
Win Source Part Number 135531-JC1AF-TM-DC6V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JC1AF-TM-DC6V CAD Model

Description

The Panasonic Electric Works JC1AF-TM-DC6V is a SPST-NO (1 Form A) general purpose relay designed for use in a variety of applications, including home appliances, industrial equipment, and automotive systems.

  • Coil Voltage: 6VDC
  • Coil Resistance: 40 Ohms
  • Contact Rating (Current): 15A
  • Switching Voltage: 250VAC (max)
  • Packaging: Bulk
  • Mounting: Chassis
