Same model may have multiple batches, images only for reference.

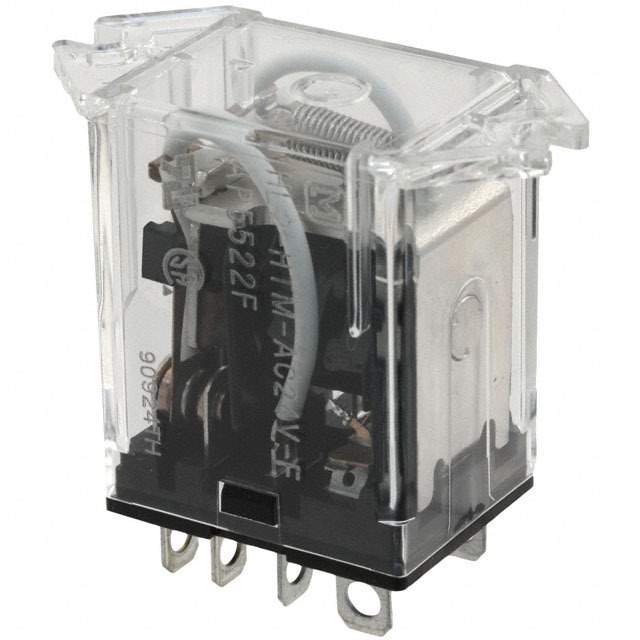

HL2-HTM-AC115V Real Image
Same model may have multiple batches, images only for reference.

HL2-HTM-AC115V

Part No HL2-HTM-AC115V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 115V
Datasheet
HL2-HTM-AC115V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 10.4mA
Coil Voltage 115VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10A
Switching Voltage 125VAC - Nom
Turn On Voltage (Max) 92 VAC
Turn Off Voltage (Min) 34.5 VAC
Operate Time 10ms
Release Time 10ms
Mounting Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Coil Power 1.2 VA
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 1043523-HL2-HTM-AC115V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HL2-HTM-AC115V CAD Model

Description

The HL2-HTM-AC115V from Panasonic Electric Works is a DPDT (2 Form C) general-purpose relay that has become obsolete (EOL).

  • Relay Type: General Purpose
  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 115VAC
  • Contact Rating: 10A
  • Packaging: Bulk
  • Termination Style: Quick Connect 0.187" (4.7mm)
  • Mounting Type: Chassis Mount
  • Release Time: 10ms
  • Popularity Rating: Medium
  • Supply and Demand Status: Balanced
  • Status: Obsolete (EOL)
