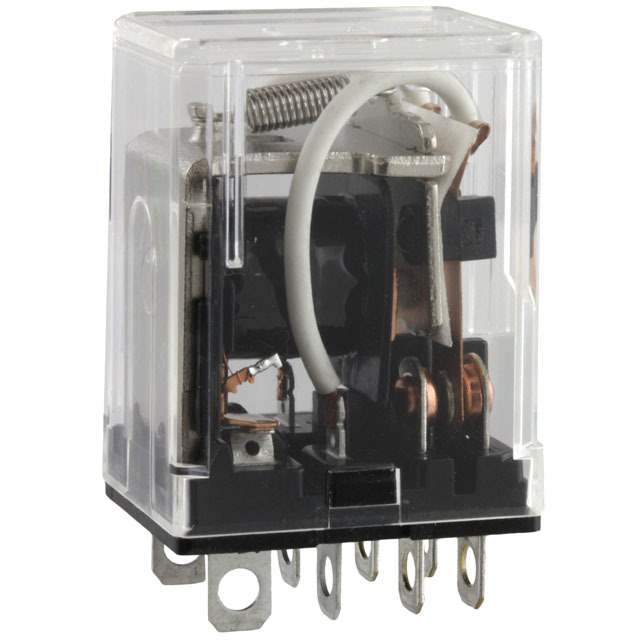

HL2-H-AC100V-F Real Image
Same model may have multiple batches, images only for reference.

HL2-H-AC100V-F

Part No HL2-H-AC100V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 100V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 12mA
Coil Voltage 100VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10A
Switching Voltage 125VAC - Nom
Turn On Voltage (Max) 80 VAC
Turn Off Voltage (Min) 30 VAC
Operate Time 25ms
Release Time 25ms
Mounting Socketable
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Power 1.2 VA
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 144707-HL2-H-AC100V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian HL2-H-AC100V-F CAD Model

Description

The Panasonic Electric Works DPDT (2 Form C) General Purpose Non Latching Relay with a coil voltage of 100VAC is an ideal solution for various applications. This relay has a switching voltage of 125VAC and a contact rating of 10A. It has a turn on voltage of 80VAC and a turn off voltage of 30VAC. The operate time and release time of this relay are 25ms respectively. It has a coil power of 1.2VA and can operate at a temperature range of -50°C to 70°C. This relay is socketable and comes in bulk packaging with 20 units per package.
