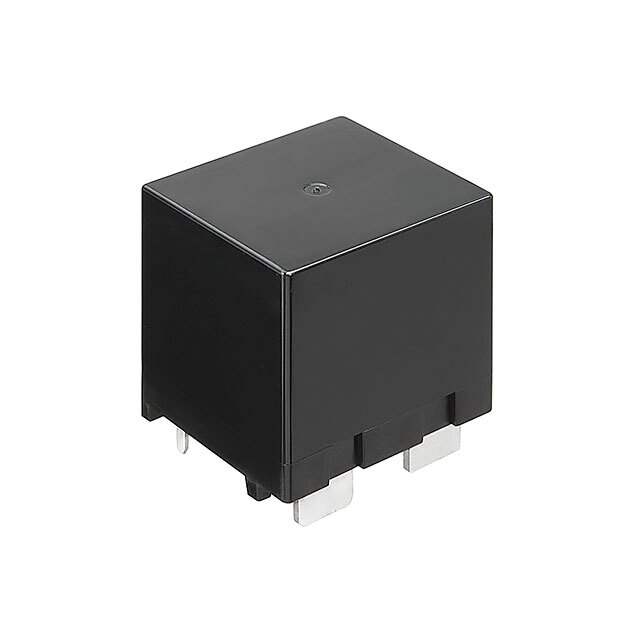

HE1aN-P-DC48V Real Image
Same model may have multiple batches, images only for reference.

HE1aN-P-DC48V

Part No HE1aN-P-DC48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 40mA
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Max) 33.6 VDC
Turn Off Voltage (Min) 4.8 VDC
Operate Time 30ms
Release Time 10ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 1.92 W
Coil Resistance 1.2 kOhms
Temperature Range - Operating -50°C to 55°C
Win Source Part Number 204732-HE1aN-P-DC48V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HE1aN-P-DC48V CAD Model

Description

The electronic component is a general-purpose relay from Panasonic Electric Works with SPST-NO (1 Form A) contact form and through-hole mounting. The coil voltage for the relay is 48VDC, and the contact rating for current is 30A. The operating temperature range for the product is -50°C to 55°C.
