Same model may have multiple batches, images only for reference.

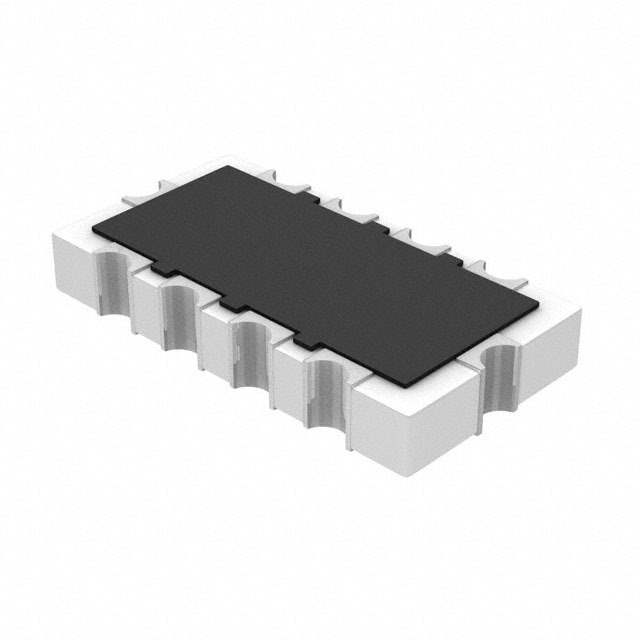

EZA-ST21AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-ST21AAAJ

Part No EZA-ST21AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 47 OHM/22PF SMD
Datasheet
EZA-ST21AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 4th
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 47
Values R = 47 Ohms, C = 22pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.157" L x 0.083" W (4.00mm x 2.10mm)
Height 0.033" (0.85mm)
Win Source Part Number 099059-EZA-ST21AAAJ
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EZA-ST21AAAJ CAD Model

Description

Product Overview

The EZA-ST21AAAJ is optimized for use in high-temperature environments, making it an ideal choice for industrial and automotive applications where durability is key.

Features and Benefits

  • High-temperature tolerance
  • Robust structural integrity
  • Consistent performance under stress
  • Longer lifespan in challenging environments

Applications

  • Automotive engines
  • Industrial machinery
  • Aerospace applications
  • Heavy-duty electronics

Additional Details

This product assures reliability and endurance, crucial for systems operating under extreme conditions.
